Minn Kota 4" Motor Rebuild Kit - Newer Motors

Minn Kota motor rebuild kit for most newer 4" lower units 2005 and newer. Depending on the actual model and year of your motor, each part may not be needed. We have included all the parts to make sure you have all the pieces you'll need to complete your rebuild.

Fits 4" newer motors. Not including Terrova series. For 80 through 101 pound thrust units.

***Be sure to check your application for proper fit!*** Motor diagrams available here   -->Minn Kota Diagrams<--

Minn Kota Rebuild Kit Includes:

• 1x 92-600-199 Brush Plate (#60 on diagram)
• 2x 188-094 Brush w/Lead (#50 on diagram)
• 2x 975-041 Brush Spring (#65 on diagram)
• 2x 973-025 Brush Plate Spacer (#110 on diagram)
• 2x 830-027 Brush Plate Screw (#85 on diagram)
• 1x 990-052 Nylatron Washer (#100 on diagram)
• 1x 990-051 Steel Washer (#95 on diagram)
• 1x 788-040 Retaining Ring (#15 on diagram)
• 1x 140-010 Ball Bearing (#10 on diagram)
• 2x 992-010 Belleville Washer (#115 on diagram)
• 1x 990-045 Thrust Spacer (#120 on diagram)

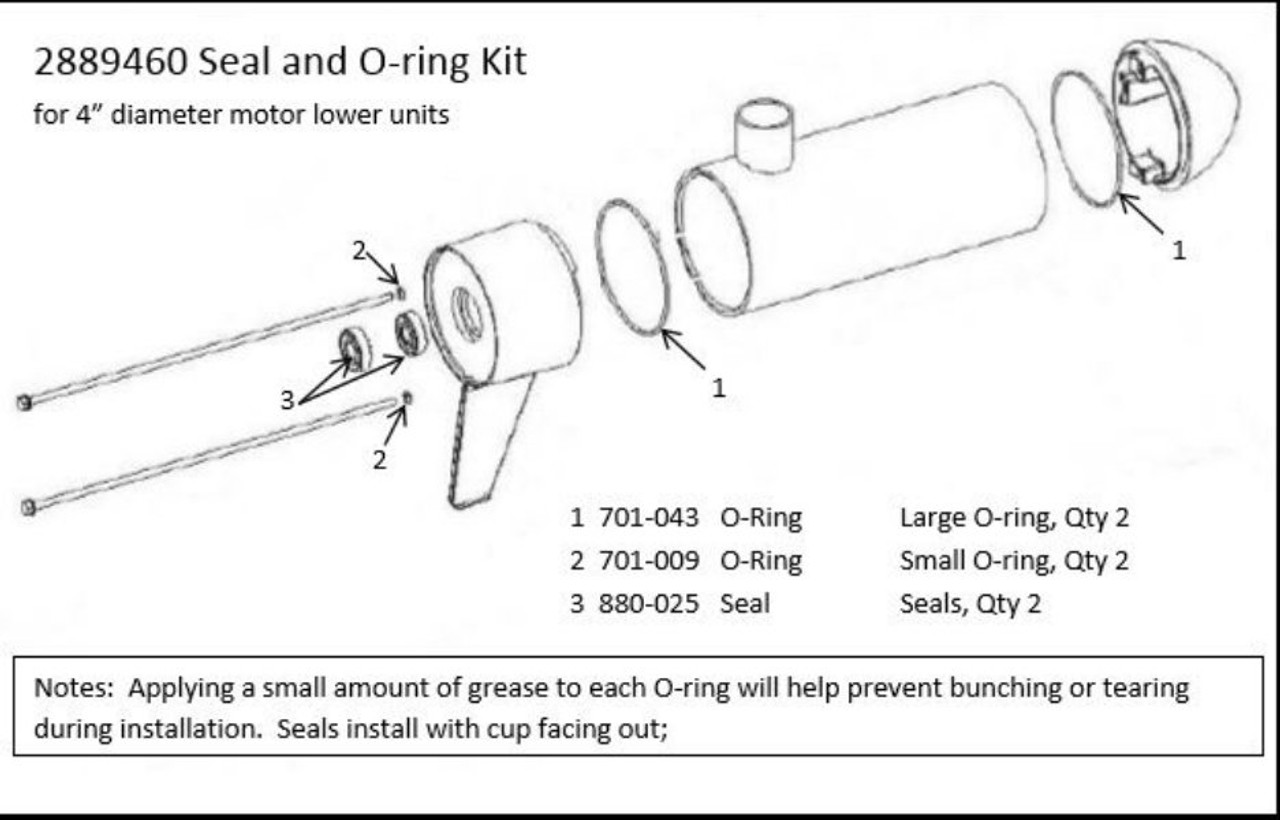

• 1x 2889460 Seal Kit (INCLUDES ALL 6 SEALS)

Minn Kota 4" Motor Rebuild Kit for Newer Style Trolling Motors

Bring your trusted Minn Kota trolling motor back to peak performance with this comprehensive 4-inch Motor Rebuild Kit. Designed specifically for newer Minn Kota freshwater and saltwater motors with a 4" diameter lower unit (housings), this kit contains all the essential, genuine replacement parts needed to complete a full service and reseal of the motor head.

Over time, the seals and brushes in your trolling motor can wear down, leading to water intrusion, decreased power, and eventual motor failure. Water in the lower unit is the number one cause of trolling motor issues. This rebuild kit addresses the problem at its source, allowing you to restore the integrity of the motor's seals and replace critical wear components, thereby extending its life and ensuring it operates with factory-level power and efficiency.

Whether you are performing preventative maintenance or repairing a leaking lower unit, this kit provides everything you need for a professional-grade reseal. All components are genuine Minn Kota parts, guaranteeing perfect fitment and the highest quality standards.

Compatibility:

This motor rebuild kit is designed exclusively for Minn Kota trolling motors that utilize a 4-inch diameter lower unit housing. It is crucial to measure the outside diameter of your motor head to confirm it is 4" before ordering.

This kit is compatible with a wide range of popular "newer style" Minn Kota motors, including but not limited to:

Freshwater Models:

• Fortrex: 80, 101, 112
• Maxxum: 80, 101, 112
• Edge: 70
• Terrova: 80, 101, 112
• Ultrex: 80, 112
• Ulterra: 80, 112
• Traxxis: 80, 101
• PowerDrive V2 / Riptide PowerDrive V2: 70

Saltwater Models (Riptide):

• Riptide Fortrex (SF): 80, 101, 112
• Riptide Maxxum (SM): 80, 101, 112
• Riptide Terrova (ST): 80, 101, 112
• Riptide Ulterra (RT): 80, 112
• Riptide Transom (RT): 80, 101, 112

Please Note:

• This kit is NOT compatible with 3-5/8" or 3-1/4" diameter motors. You must verify your motor's housing diameter.
• This kit is designed for models manufactured from approximately 2005-present that use the flanged cartridge seal. If you have an older motor, you may require a different seal kit.
• Always consult your motor's specific parts diagram to confirm compatibility if you are uncertain.

Don't let a minor seal failure sideline your fishing season. Invest in this complete rebuild kit to ensure your Minn Kota motor runs powerfully and reliably for years to come.
