Product Description

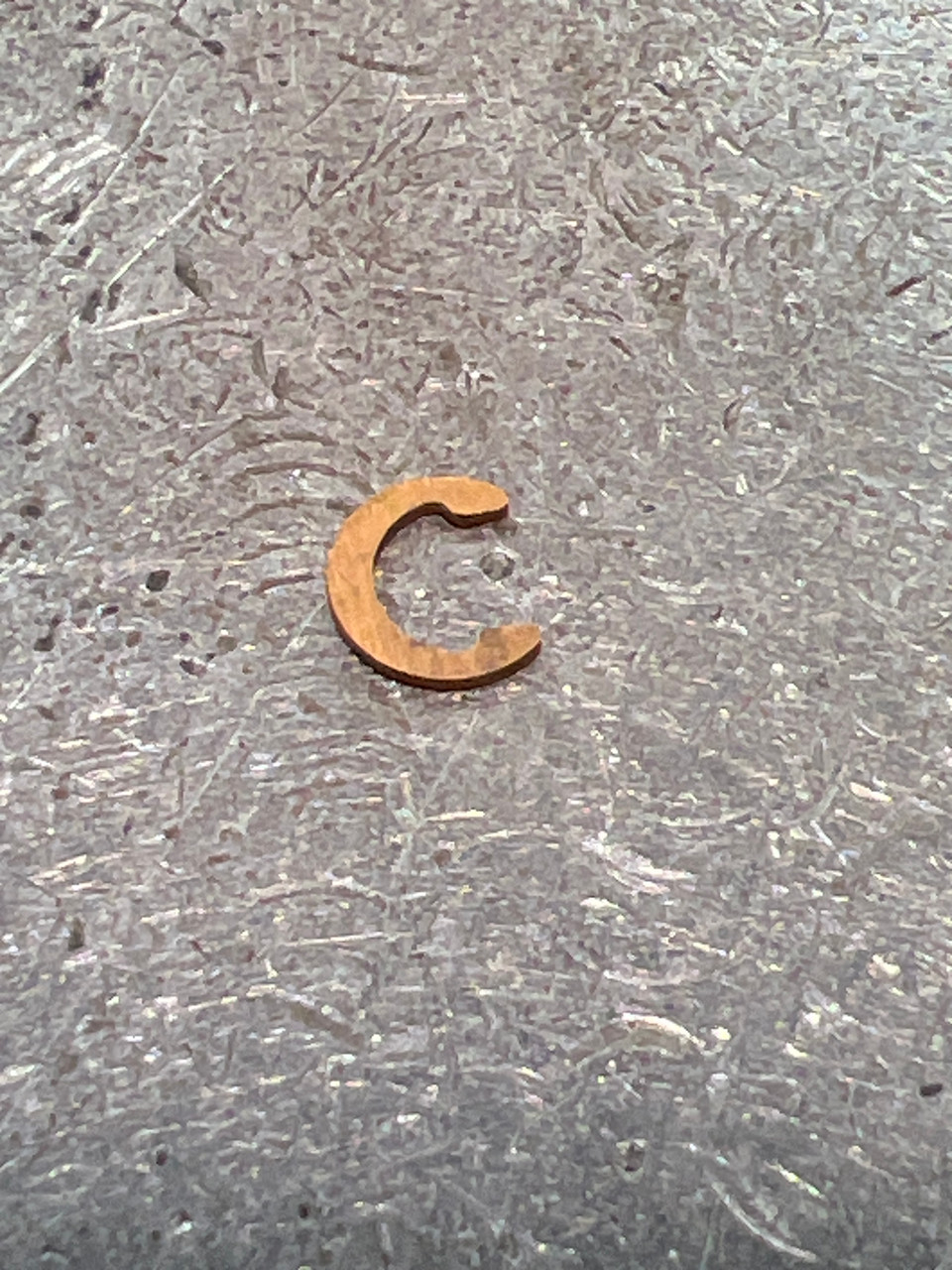

DAM Quick Spool Gear C-Clip Part #145-096 | Fits 700 & 800 Series
Ensure the power transmission of your vintage baitcaster with this genuine DAM Quick Spool Gear C-Clip (Part No. 145-096). Also known as a retaining ring or circlip, this vital fastener secures the spool gear (pinion gear component) onto the shaft, ensuring it remains properly engaged with the main gear and spool assembly.
On the Champion Series 700 and 800 reels, this clip prevents the gear from wandering or disengaging during the high-speed rotation of the cast or the torque of the retrieve. A missing or stretched C-clip can lead to gear slippage or grinding. Replace it with this factory-specification part to maintain the rugged reliability of your German-engineered reel.
Product Features
-
Secure Retention: Locks the spool gear in place to prevent axial movement and ensuring consistent mesh.
-
High-Tensile Spring Steel: Designed to maintain strong clamping force on the shaft groove.
-
Critical Drive Component: Essential for the proper function of the reel's drive and free-spool mechanism.
-
Direct Replacement: Fits the specific shaft dimensions of the 700/800 series spool assembly.
Compatible Models
This part is verified to fit the following DAM Quick Champion Series reels:
-
700
-
700B
-
800
-
800B
Part Specifications
-
DAM Quick Part Number: 145-096
-
Alternate Part Number: 914 5096
Schematics & Installation References
To pinpoint the exact location of this retaining clip within the spool gear assembly, please consult the specific PDF schematics for your model at www.reelschematic.com.
Note: C-clips are prone to springing away during removal. We recommend using a non-magnetic probe or covering the assembly with a cloth during installation to prevent loss.
