Product Description

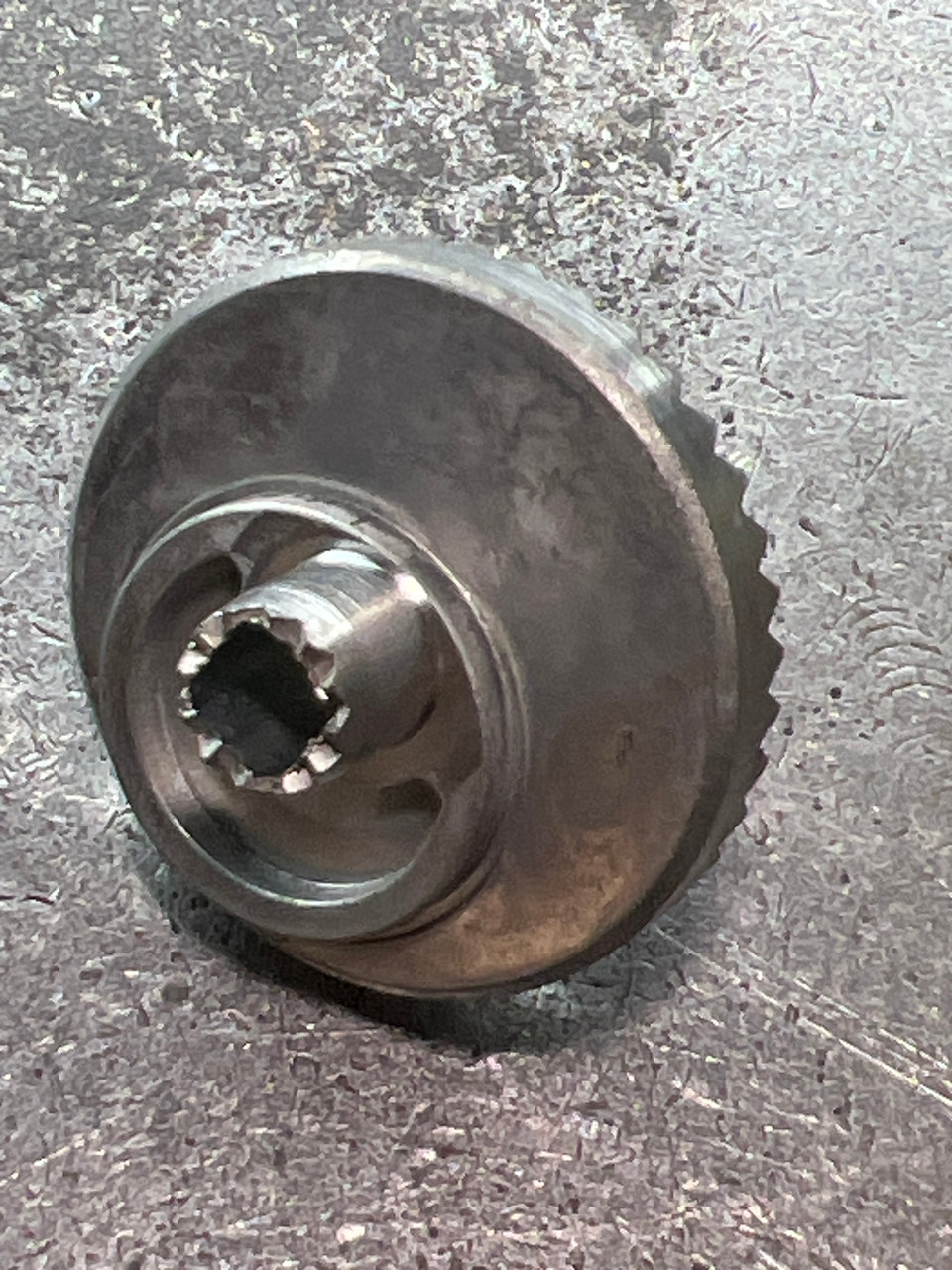

DAM Quick 110-509 Drive Gear - SLS 0 / 1

Restore the smooth, powerful retrieve of your ultralight reel with this genuine DAM Quick Drive Gear.

The drive gear (often called the main gear) is the mechanical heart of your spinning reel. On the compact DAM Quick SLS 0 and SLS 1, this gear translates the rotation of the handle into the high-speed spin of the rotor. Over time, heavy use or lack of lubrication can cause the gear teeth to wear down, chip, or strip entirely, resulting in a "coffee grinder" noise, rough operation, or a slipping handle. This authentic replacement part restores the silent, fluid mesh and cranking power that makes fishing these small reels a joy.

Product Features

• Precision Machining: Teeth are cut to exact tolerances to mesh perfectly with the pinion gear for a buzz-free retrieve.

• Model Specific: Sized specifically for the compact gearboxes of the SLS 0 and SLS 1.

• Durable Alloy: Constructed to withstand the torque of fighting fish while maintaining a lightweight profile.

• Restored Performance: Eliminates grinding, gear slap, and the "rough" feel associated with worn internals.

Model Compatibility

This part is verified to fit the following DAM Quick spinning reel models:

• DAM Quick SLS 0

• DAM Quick SLS 1

Note: This gear is designed for the small-frame SLS series. It is not compatible with the larger SLS 2, 3, 4, or 5 models, which require larger gear diameters and different tooth pitches.

Part Specifications

• Part Number: 110-509

• Alternate Part Number: 110509

• Part Description: Drive Gear / Main Gear / Master Gear

Schematic Reference

To confirm the assembly order of the gear, shims, and bearings, please consult the service diagrams.

• View the specific schematic for your reel at www.reelschematic.com

Installation Notes

Replacing the drive gear is a major maintenance task that requires opening the reel body.

1. Remove the handle and side plate to access the gearbox.

2. Remove the old drive gear, paying close attention to any copper or Teflon shim washers located on the shaft. These are critical for gear alignment.

3. Clean the interior of the reel body and the pinion gear thoroughly to remove any metal shavings from the old gear.

4. Apply a generous amount of high-quality reel grease to the teeth of the new 110-509 gear.

5. Install the new gear, ensuring the shims are placed correctly to prevent the gear from binding or feeling too loose.

6. Reassemble the side plate and test the feel. If it feels "geary," you may need to adjust the shim stack.
