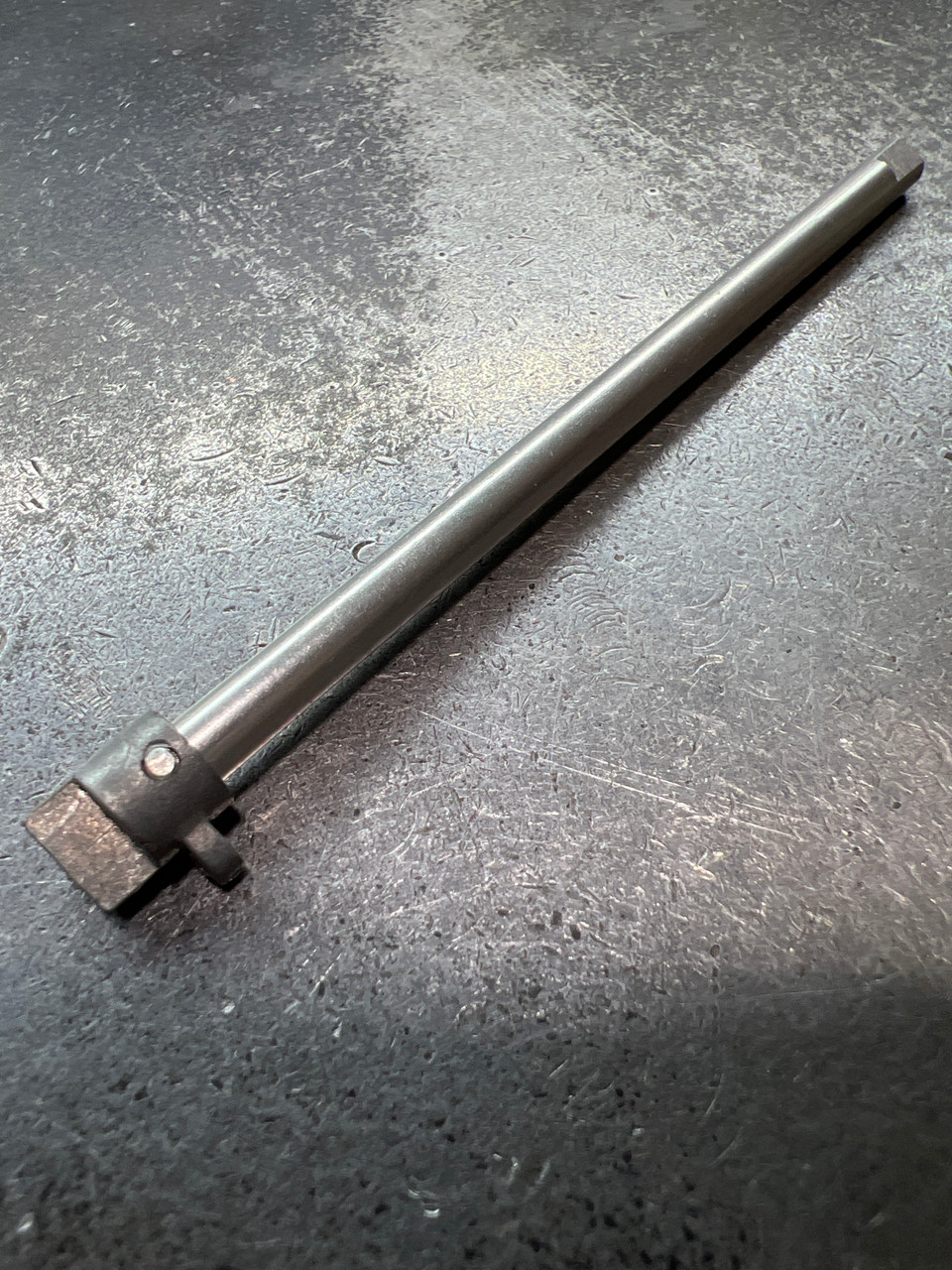

DAM Quick 110-501 Lever Shaft - SLS 5

Restore the heavy-duty control of your surf reel with this genuine DAM Quick Lever Shaft.

The 110-501 Lever Shaft is the critical mechanical link for the anti-reverse system on the massive DAM Quick SLS 5. This component passes through the reel's reinforced body, connecting the external selector switch to the internal heavy-duty cam and pawl assembly. In a reel designed for big game, this shaft must withstand significant torque and environmental stress. If your anti-reverse switch is spinning freely, broken, or seized, this authentic replacement part is essential for regaining control over your reel’s winding modes.

Product Features

• Robust Design: Engineered to handle the mechanical stresses associated with the large-frame SLS 5.

• Direct Linkage: Precision-machined to ensure zero-slop transfer from the external switch to the internal locking mechanism.

• Exact Fit: Designed specifically for the body housing thickness and port diameter of the SLS 5.

• Corrosion Resistant: Manufactured from durable materials to resist saltwater corrosion and seizing.

Model Compatibility

This part is verified to fit the following DAM Quick spinning reel models:

• DAM Quick SLS 5

Note: This shaft is unique to the largest reel in the series. It is not interchangeable with the smaller SLS 0, 1, 2, 3, or 4 models.

Part Specifications

• Part Number: 110-501

• Alternate Part Number: 110501

• Part Description: Anti-Reverse Switch Shaft / Selector Shaft / Cam Axis

Schematic Reference

To view the assembly sequence of the shaft, external knob, and internal cam, please consult the service diagrams.

• View the specific schematic for your reel at www.reelschematic.com

Installation Notes

Replacing the lever shaft requires opening the main gear housing.

1. Remove the heavy-duty handle and side plate screws to access the gearbox.

2. Locate the internal end of the lever shaft where it connects to the anti-reverse cam.

3. Remove the retaining screw or clip securing the internal cam.

4. Slide the old shaft out from the exterior of the reel body.

5. Thoroughly clean the pass-through hole of salt buildup and old grease.

6. Apply a coating of marine grease to the new 110-501 shaft to prevent water intrusion and ensure smooth operation.

7. Insert the new shaft, reassemble the internal linkage, and test the switch action before sealing the reel.
