Product Description

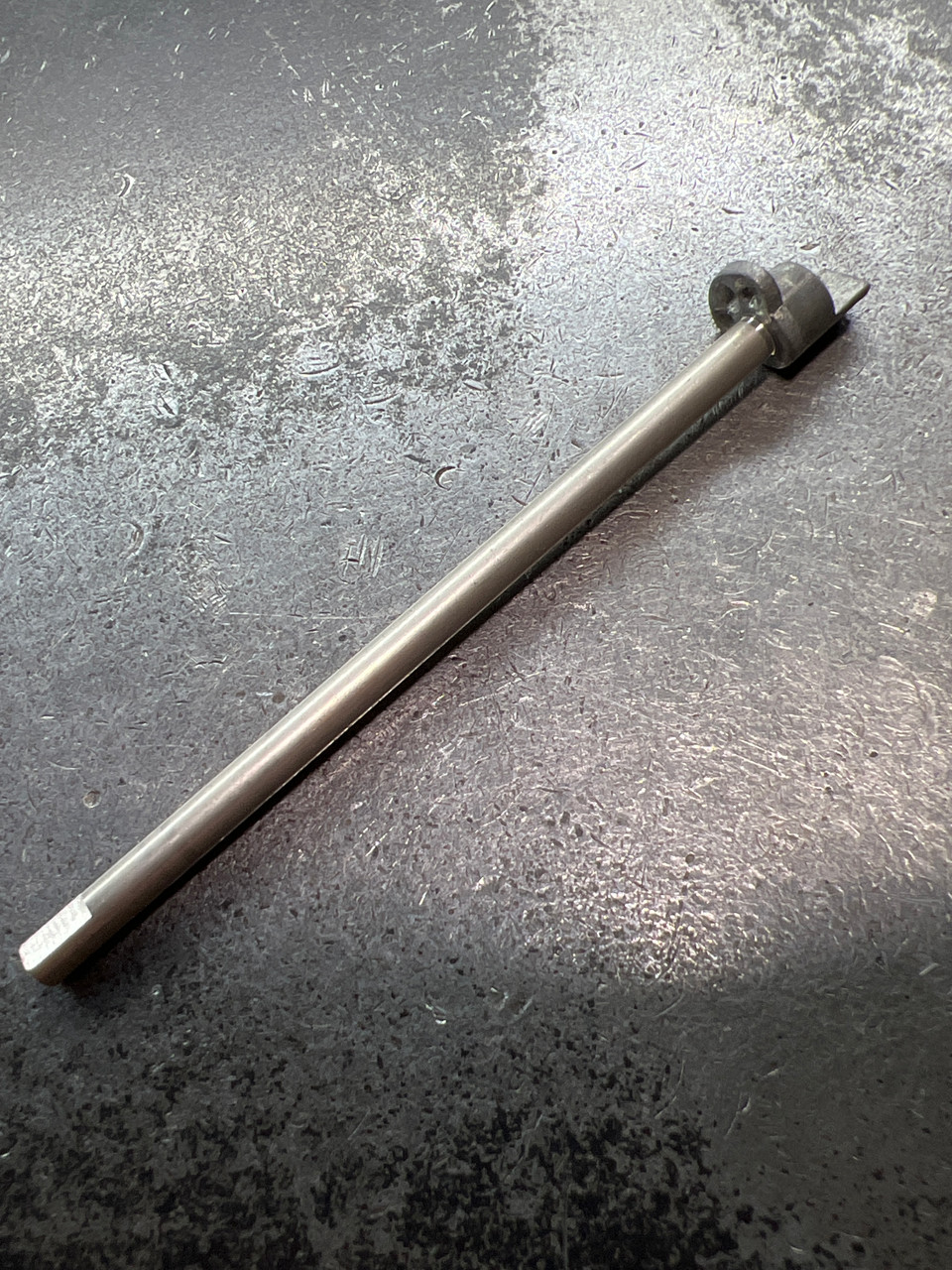

DAM Quick 110-499 Lever Shaft - SLS 3

Restore the precise control of your reel’s anti-reverse system with this genuine DAM Quick Lever Shaft.

The 110-499 Lever Shaft is the vital mechanical link for the DAM Quick SLS 3. This component passes through the reel body, serving as the axis that connects the external anti-reverse switch button to the internal cam and pawl assembly. If your anti-reverse switch spins loosely, feels disconnected, or has snapped off entirely, this authentic replacement part is required to re-establish control. It ensures you can reliably toggle between free-spooling back-wind and instant anti-reverse lock-up.

Product Features

• Direct Linkage: precision-machined to transfer the rotation of the external switch to the internal mechanism without slop.

• Exact Fit: Engineered specifically for the body housing dimensions of the DAM Quick SLS 3.

• Durable Construction: Made from corrosion-resistant metal to withstand the torque of frequent switching.

• Essential Repair: The only solution for a "dead" or broken anti-reverse selector switch.

Model Compatibility

This part is verified to fit the following DAM Quick spinning reel models:

• DAM Quick SLS 3

Note: This shaft is designed specifically for the SLS 3 frame. It is not compatible with the smaller SLS 2 (Part #110-498) or the larger SLS 4/5 models.

Part Specifications

• Part Number: 110-499

• Alternate Part Number: 110499

• Part Description: Anti-Reverse Switch Shaft / Selector Shaft / Cam Axis

Schematic Reference

To view the assembly sequence of the shaft, external knob, and internal cam, please consult the service diagrams.

• View the specific schematic for your reel at www.reelschematic.com

Installation Notes

Replacing the lever shaft requires partial disassembly of the reel body.

1. Remove the side plate to expose the internal gearbox.

2. Locate the point where the shaft enters the body and connects to the internal anti-reverse cam.

3. Remove the screw or clip securing the internal cam to the shaft.

4. Slide the old shaft out from the exterior side of the housing.

5. Clean the pass-through hole and apply a light coating of marine grease to the new 110-499 shaft to ensure a water-tight seal and smooth rotation.

6. Insert the new shaft, reattach the internal components, and test the switch action before closing the reel.
