Product Description

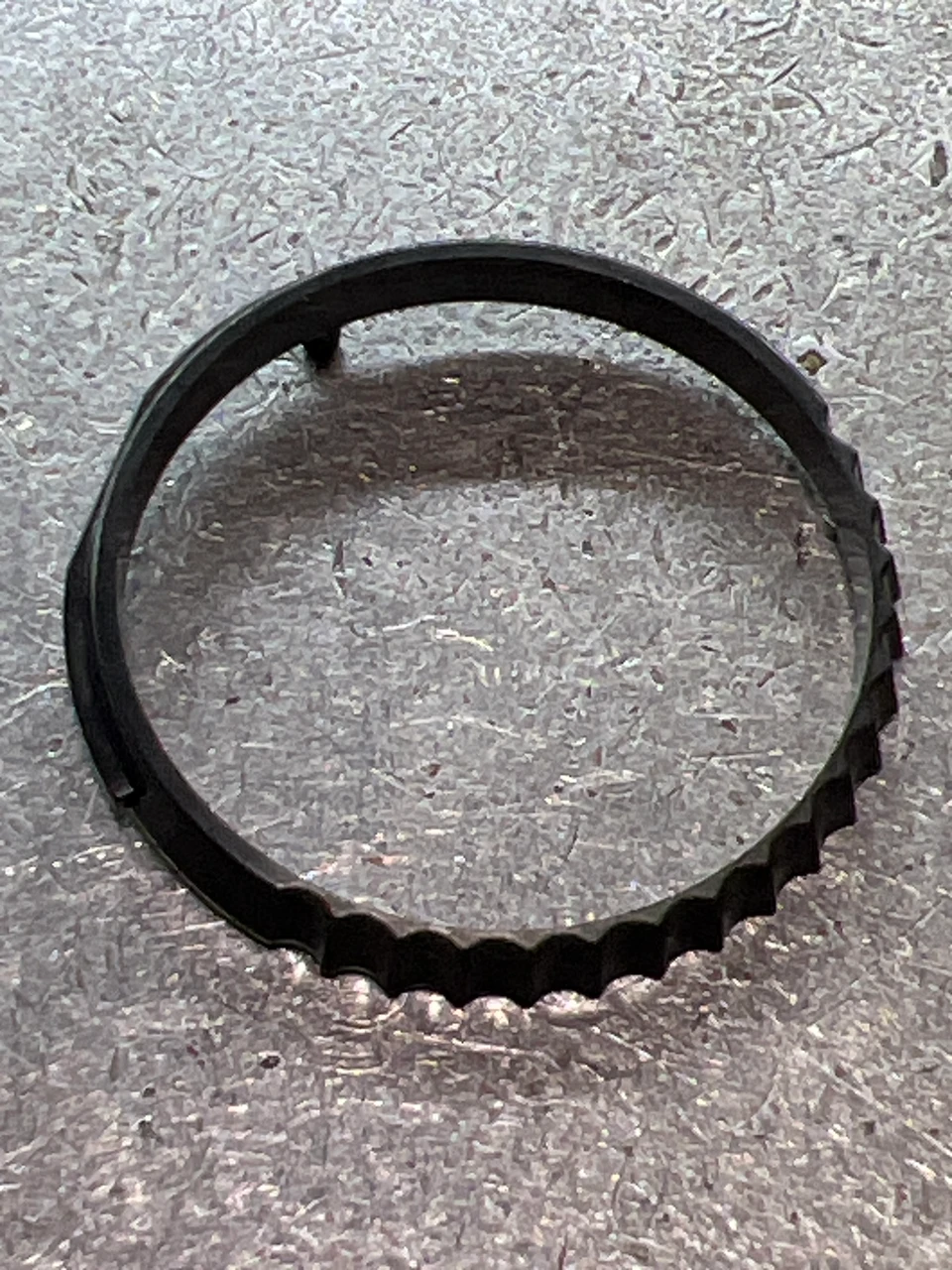

Shimano 10F6B Line Click Gear (TGT1560)
The Shimano 10F6B Line Click Gear (TGT1560) is a high-precision internal component responsible for the audible "click" sound when line is pulled from the reel while the clicker (bait alarm) is engaged. Mounted on the spool shaft or the spool itself, this gear features a series of teeth that interact with the clicker pawl.
In offshore and trolling reels, the clicker serves as a vital strike indicator. Over time, the teeth on the click gear can become rounded or "shaved" if the clicker is left on during high-speed runs or if the metal pawl is significantly harder than the gear material. Replacing a worn gear with this genuine Shimano part restores the loud, crisp alarm necessary for detecting bites in noisy boat environments.
Product Specifications
-
Part Name: Line Click Gear / Clicker Gear
-
Part Number: 10F6B
-
Shimano Code: TGT1560
-
Material: High-Density Industrial Polymer / Composite
-
Function: Operates the audible bait alarm (clicker) during line payout.
Alternate Part Numbers
This part is identified in modern Shimano offshore technical manuals by the following number:
-
TGT1650 (Often cross-referenced with TGT1560)
Compatibility & Fitment
The 10F6B (TGT1560) is a specialized gear found in several of Shimano’s high-performance lever drag and heavy-duty star drag reels. It is a direct factory fit for the following series:
-
Shimano Talica Series: TAC-12, TAC-12II, TAC-16, TAC-16II, TAC-20II, TAC-25II
-
Shimano Tyrnos Series: Fits select modern 2-speed models (Verify via TGT code)
-
Shimano Speedmaster Series: SPM-12II, SPM-16II (Modern variants)
Key Features
-
Audible Precision: The tooth profile is engineered to provide a sharp, distinct "click" that is easily heard over engine noise and wind.
-
Low Friction Design: Manufactured from a self-lubricating composite that minimizes wear on the clicker pawl while resisting heat buildup.
-
Corrosion Resistance: Being a polymer-based component, it is entirely immune to the salt-bridge corrosion common in offshore reels.
-
Direct OEM Fit: Guaranteed to lock securely onto the spool shaft or spool flange of Talica and Speedmaster series reels.
Maintenance & Troubleshooting
-
Symptom of Failure: If your clicker sounds "dull," skips, or becomes silent when line is pulled, the teeth on the 10F6B are likely worn down.
-
Inspection: Check for "plastic shavings" inside the side plate near the clicker assembly. This is a tell-tale sign that the gear is being ground down by a bent or overly tight clicker pawl.
-
Lubrication: While the gear is self-lubricating, a tiny amount of waterproof marine grease on the teeth can help dampen vibration and significantly extend the life of both the gear and the pawl.
Pro Tip: When replacing this gear, always inspect the Click Pawl (TGT1648) and the Click Spring. If the pawl is sharp or the spring tension is too high, it will quickly ruin a new gear. For a detailed layout of the clicker assembly, refer to the PDF schematics at www.reelschematic.com.
