Product Description

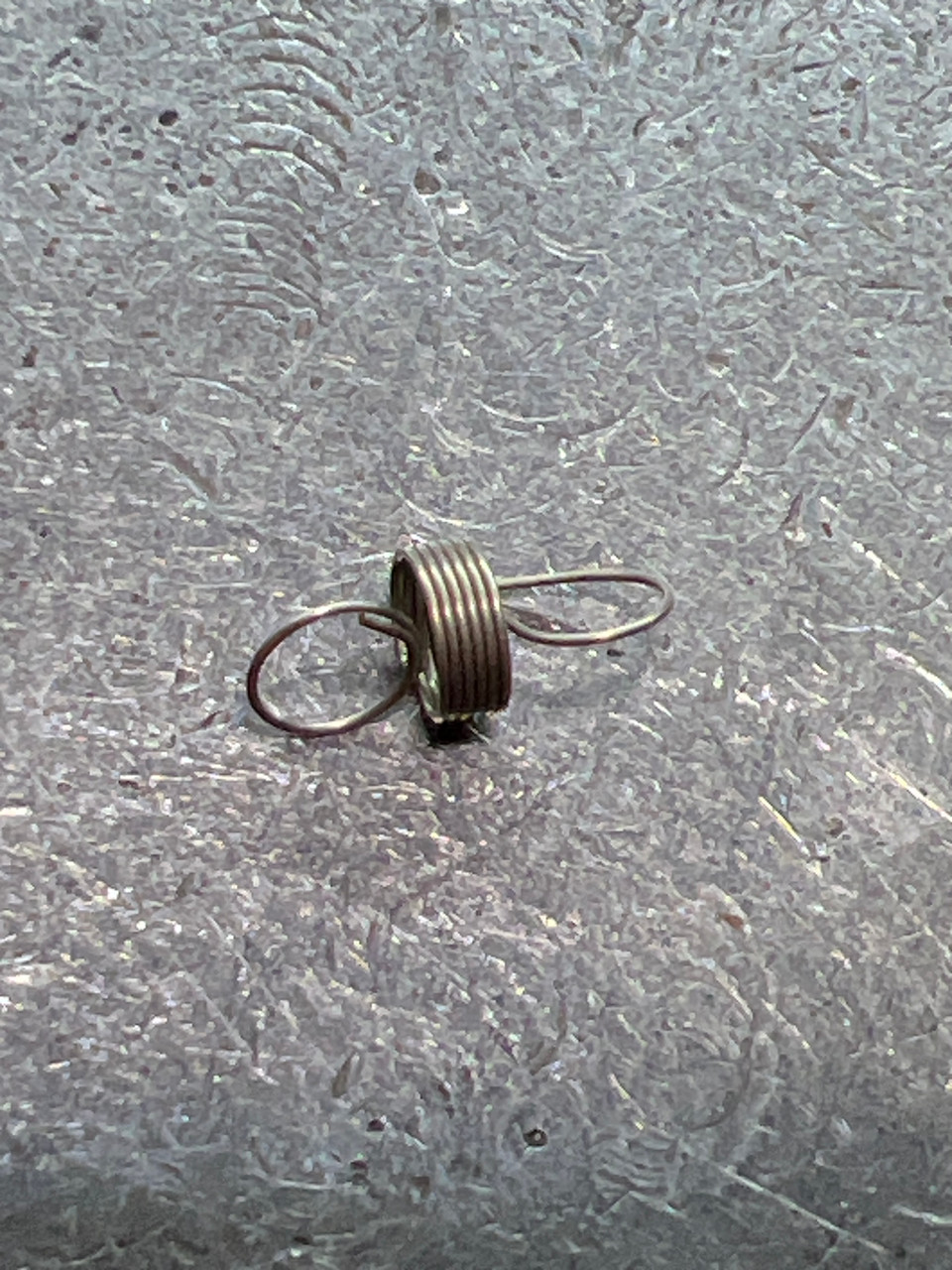

Shimano 10CBS Anti-Reverse Pawl Spring (TGT0039)
The Shimano 10CBS Anti-Reverse Pawl Spring (TGT0039) is a critical safety and performance component found in the drive train of Shimano’s conventional and trolling reels. This spring provides the essential tension required to keep the anti-reverse pawl (the "dog") engaged with the ratchet gear.
This mechanical system is your reel's primary defense against "back-play," ensuring that the handle cannot spin backward when a fish strikes or during a heavy retrieve. Because this spring is constantly under tension and moves every time the handle turns, it is a common wear item. If your reel has developed a "clunking" sound or the handle slips backward, the 10CBS spring may be stretched or corroded. Replacing it with a genuine Shimano factory part restores the instant, reliable hook-setting power your reel was designed for.
Product Specifications
-
Part Name: Anti-Reverse Pawl Spring
-
Part Number: 10CBS
-
Shimano Code: TGT0039
-
Material: Marine-Grade Stainless Spring Steel
-
Function: Engagement tension for the mechanical anti-reverse pawl.
Alternate Part Numbers
This part is frequently cross-referenced or identified in older technical manuals by the following identification number:
-
TGT0039
Compatibility & Fitment
The 10CBS (TGT0039) is a widely utilized spring in Shimano’s robust round-frame and trolling reel series. It is a direct factory fit for the following models:
-
Shimano Tekota Series: TEK-300, TEK-500, TEK-600, TEK-700, TEK-800 (including LC and LCM models)
-
Shimano Torium Series: TN-14, TN-16, TN-16N, TN-20, TN-30
-
Shimano Trinidad Series: TN-12, TN-14, TN-16, TN-16N, TN-20, TN-30 (Gold models)
-
Shimano Speedmaster Series: IV and II-Speed models (Verify via TGT code)
-
Shimano Charter Special: TR-1000LD, TR-2000LD
Pro Tip: When installing the Anti-Reverse Pawl Spring, ensure the "loop" or "arm" of the spring is properly seated around the pawl. If the spring is installed upside down, it may cause the anti-reverse to fail or create excessive clicking noise. For a precise visual of the assembly sequence, refer to the PDF schematics for your specific model at www.reelschematic.com.
Key Features
-
High-Resilience Steel: Designed to withstand the high-frequency oscillation of the pawl during fast retrieves.
-
Corrosion Resistance: Specially treated to prevent "salt-locking," ensuring the spring remains flexible in offshore environments.
-
Fail-Safe Reliability: Provides the mechanical backup needed to protect the internal gears during high-impact strikes.
-
OEM Precision: Guaranteed to provide the exact tension required by Shimano’s factory specifications.
