SHIMANO 101DZ SPOOL ASSY (BNT5675)

Restore Maximum Casting Distance

The Shimano 101DZ Spool Assembly (BNT5675) is the genuine OEM replacement spool for the battle-tested Shimano Curado K series baitcasting reels. This assembly features Shimano's S3D (Stable Spool Design) technology, which utilizes a thin-wall aluminum construction to significantly reduce spool vibration. The result is an incredibly smooth sensation when casting and retrieving.

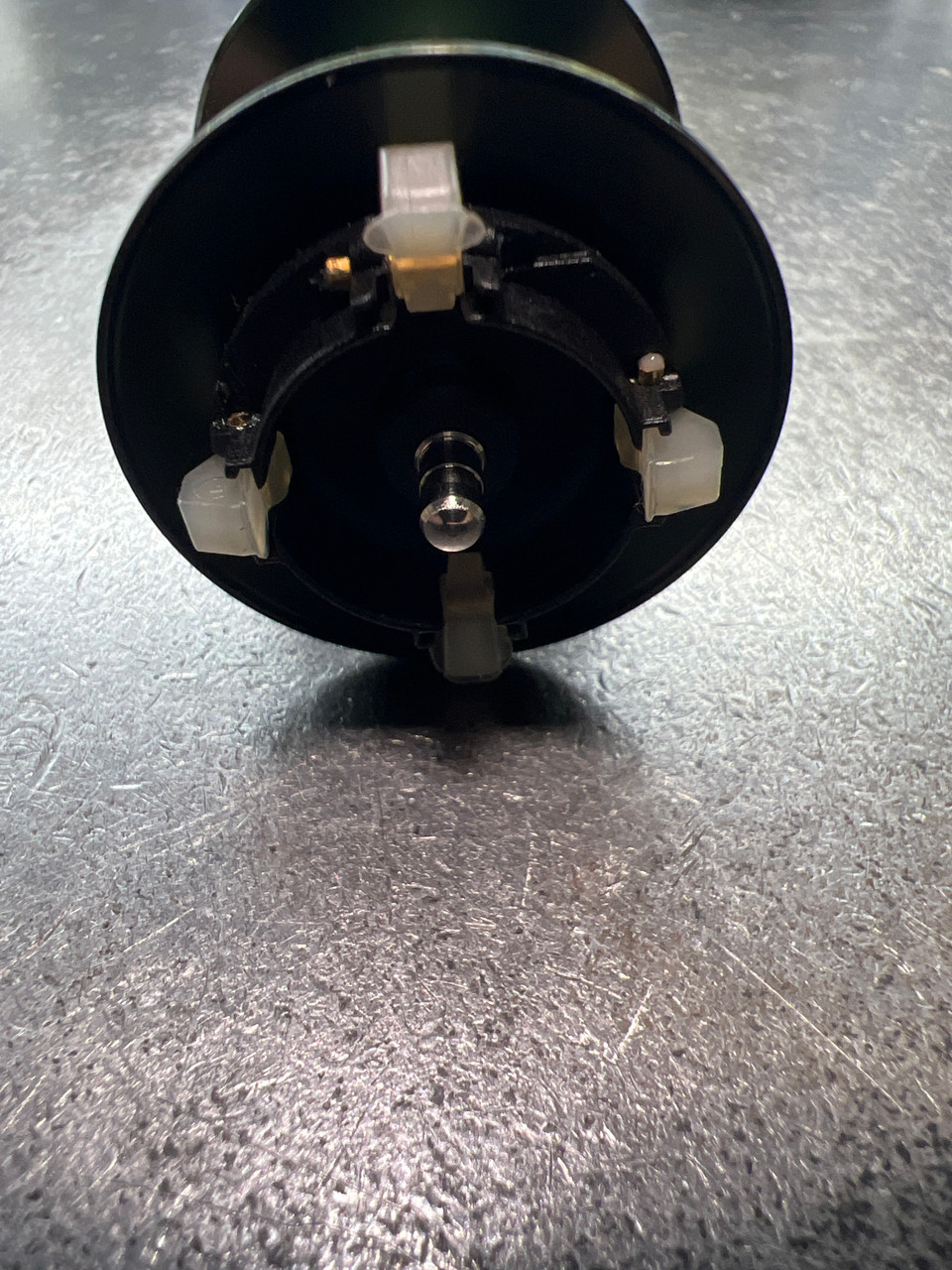

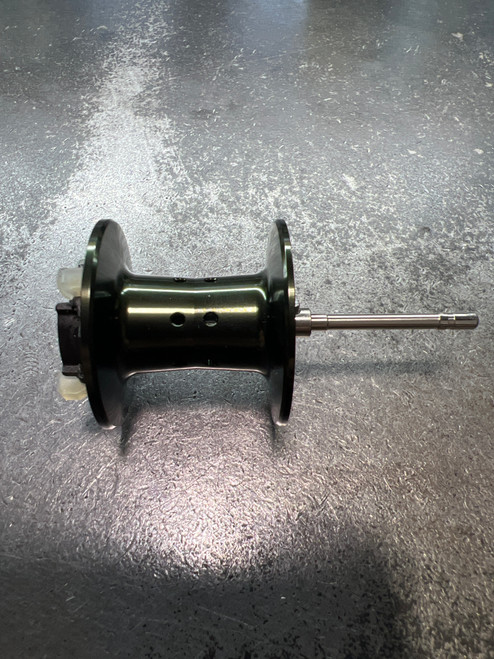

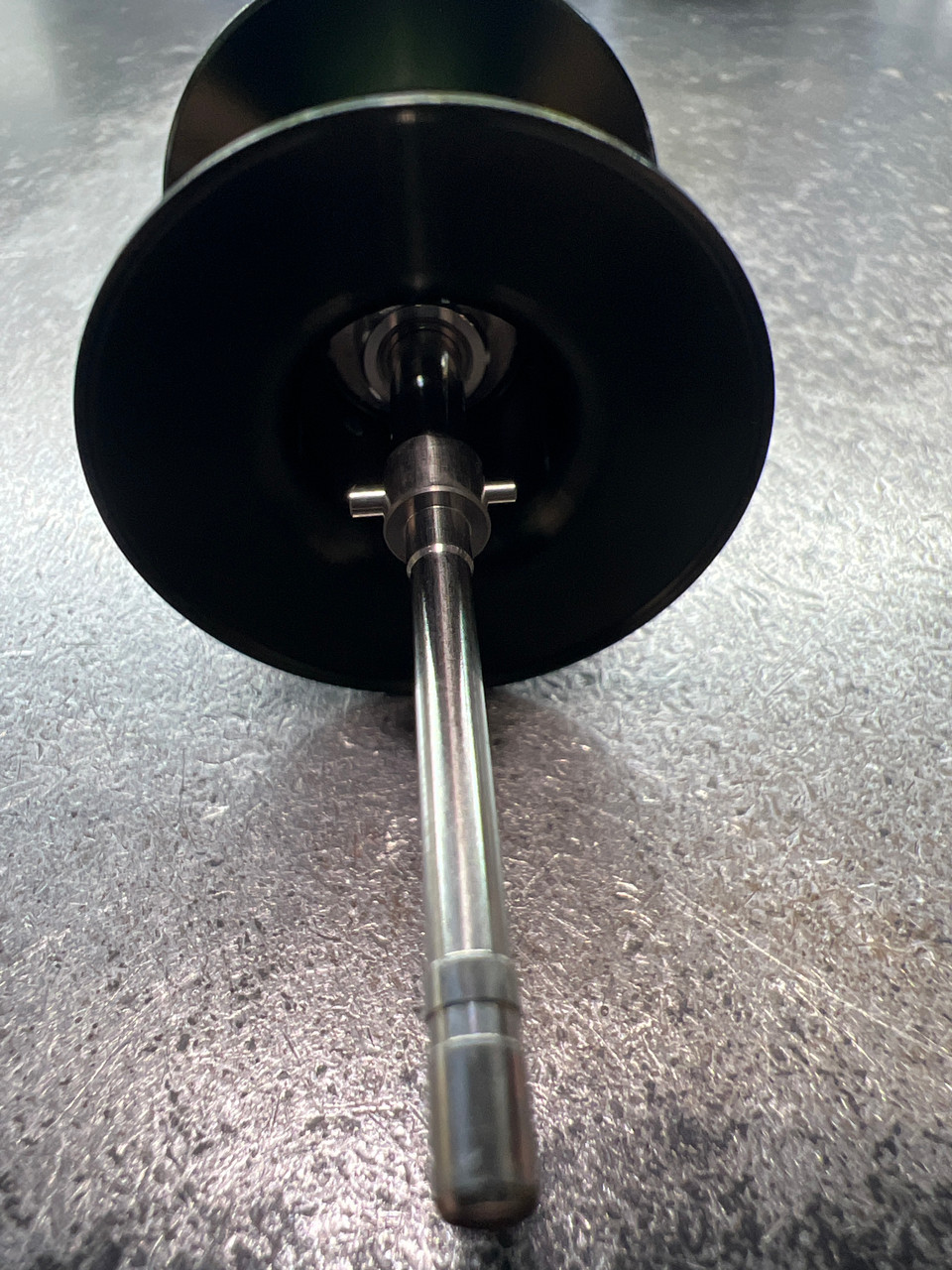

This complete assembly includes the spool shaft, pin, and the integrated SVS Infinity brake rotor mechanism. If your original spool has been dented, the shaft bent, or the brake hub worn, replacing it with this authentic part will instantly restore the reel's casting accuracy and braking consistency.

Product Specifications

• Part Name: Spool Assembly

• Manufacturer: Shimano

• Part Number (MPN): BNT5675

• Schematic Code: 101DZ (Varies by diagram, often Key #101 on 'DZ' coded schematics)

• Material: Anodized Aluminum (S3D Design)

• Brake Compatibility: SVS Infinity System (4-pin)

• Color: Black / Gunmetal (Standard Curado K finish)

Compatible Models

This part is engineered specifically for the 200-size "K" generation of the Curado series. It fits both right and left-handed models as the spool dimensions are identical.

• Shimano Curado 200 K Series (Right Hand):

  • CU 200 K

  • CU 200HG K (High Gear)

  • CU 200XG K (Extra High Gear)

• Shimano Curado 201 K Series (Left Hand):

  • CU 201 K

  • CU 201HG K (High Gear)

  • CU 201XG K (Extra High Gear)

Note: This spool is not compatible with the Curado DC, Curado MGL, or older 'I'/'G' series models.

Installation & Reference

To ensure this is the correct spool for your reel, please cross-reference part number BNT5675 with your reel's service diagram.

• Schematic Diagrams: For detailed PDF schematics and part location verification, please visit www.reelschematic.com.

• Alternate Part Number: BNT5675 (Check specific schematic key for "101DZ" reference)

Installation Tip: When installing the new spool, ensure the brake shoes (if not included, transfer them; however, this assembly typically includes the brake hub) are set correctly. Apply a single drop of lightweight oil to the spool bearings and the spool shaft ends for optimal free-spool performance.
