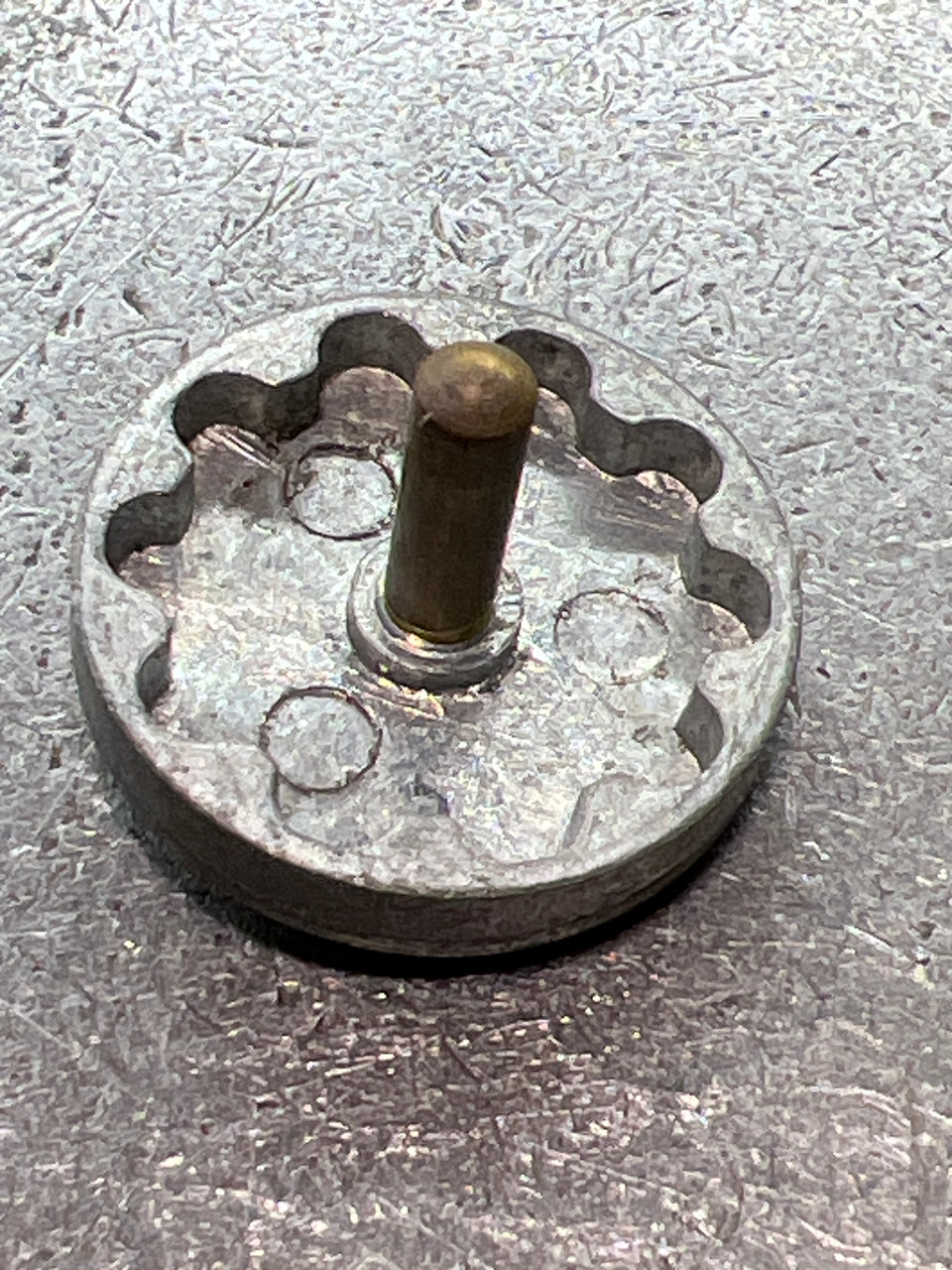

DAM Quick 100-830 – Outside Cycloid Gear, Models 247 & 248 Replacement Part
Product Overview
Ensure the perfect line lay of your vintage German spinning reel with this genuine DAM Quick 100-830 Outside Cycloid Gear. Engineered specifically for the DAM Quick 247 and 248 series, this gear (often referred to as the oscillation gear) is the heart of the reel’s line management system.
Located on the side of the reel body, this gear engages with the drivetrain to power the oscillation slide, moving the spool up and down during retrieval. If your reel is stacking line unevenly, making clicking noises during the spool stroke, or if the oscillation has failed entirely, a worn cycloid gear is often the cause. Installing this factory-correct replacement ensures the cross-winding pattern remains consistent, preventing line dig-in and ensuring long, smooth casts.
Key Features
-
Precision Oscillation: Drives the traverse slide to create the specific cross-wind pattern required for these reels.
-
Direct Fit: Machined to fit the body stud and mesh perfectly with the main drive components of the 247/248 series.
-
Durable Material: Built to withstand the constant friction of the oscillation cycle.
-
Restores Function: Eliminates "dead spots" in the spool stroke and ensures even line distribution.
Model Compatibility
This part is verified to fit the following spinning reel models:
-
DAM Quick 247
-
DAM Quick 248
Technical Specifications
-
Part Name: Outside Cycloid Gear (Oscillation Gear)
-
Manufacturer Part Number (MPN): 100-830
-
Alternate Part Number: 100830
Schematic Reference
To visualize how this gear interfaces with the oscillation slide, please consult the official reel schematic. You can locate the detailed diagram for the DAM Quick 247 and 248 at www.reelschematic.com.
Note: This gear typically drives the Oscillation Slide (100-833). We recommend inspecting the teeth on the slide and the condition of the mounting stud when replacing this gear.
