Product Description

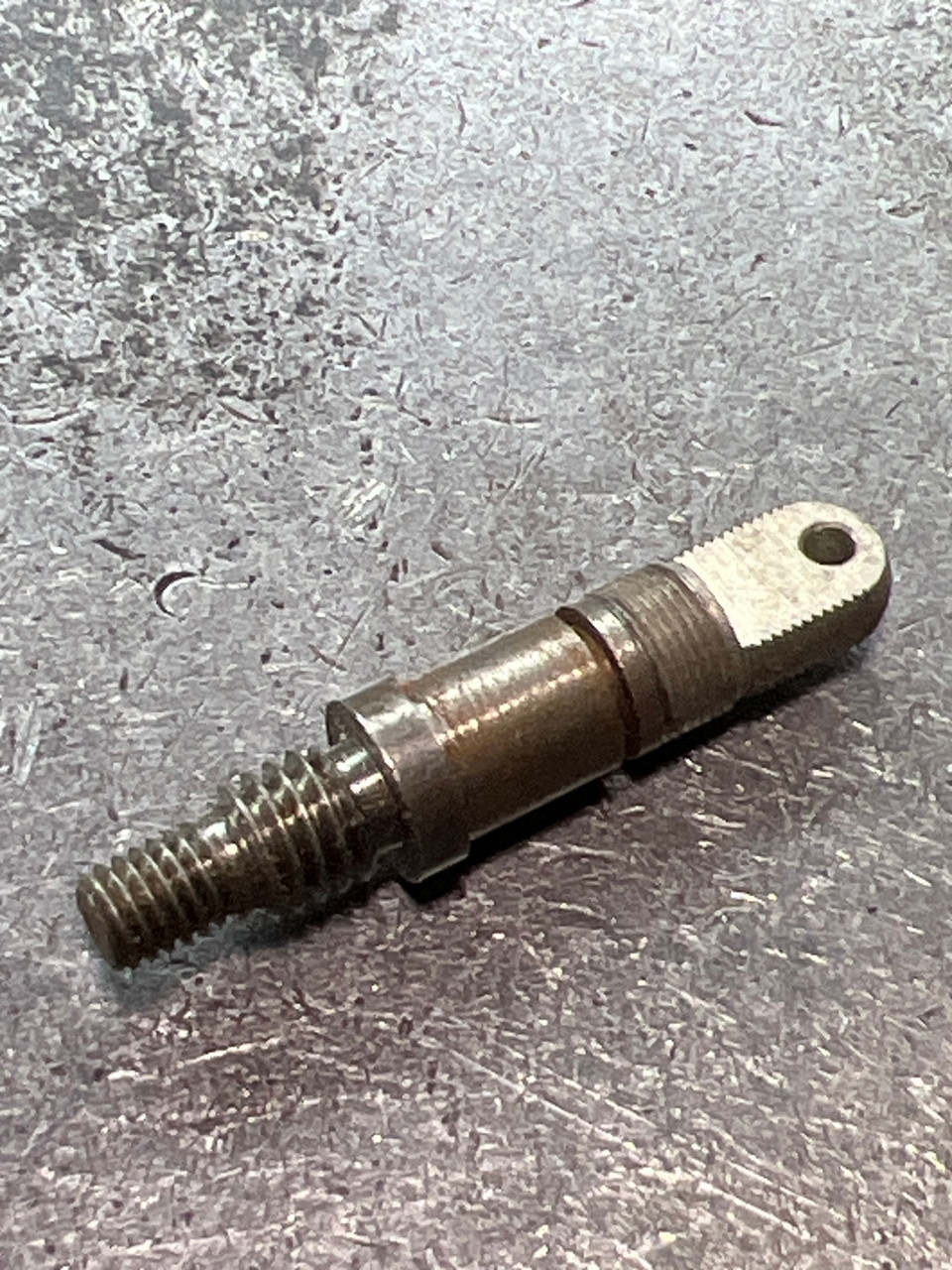

DAM Quick 100-385 Crank Axle (Main Spool Axle)
Restore Perfect Line Lay and Spool Stability
Ensure the smooth, vertical oscillation of your vintage ultra-light reel with the DAM Quick 100-385 Crank Axle (technically referred to as the Main Axle or Spool Shaft). This central shaft is the backbone of the DAM Quick 265 Microlite. It runs through the center of the reel, connecting the internal oscillation system to the spool, and is responsible for the up-and-down motion that distributes line evenly during retrieval.
On vintage Microlite reels, the main axle is susceptible to bending if the reel is dropped or if the spool is subjected to excessive side-load pressure. A bent axle creates friction within the pinion gear, causing the reel to bind at the top or bottom of the stroke. Replacing a compromised shaft with this precision-ground, hardened steel component restores the fluid, frictionless winding action that makes the Quick 265 a legendary trout reel.
Compatible Models
This part is precision-manufactured specifically for the chassis of the following vintage DAM Quick model:
-
Quick 265 (Microlite)
Key Features
-
Precision Straightness: Ground to exact tolerances to ensure it slides freely through the pinion gear without binding.
-
Oscillation Core: Transfers the motion from the internal slide directly to the spool for even line packing.
-
High-Strength Steel: Hardened to resist bending and wear at the oscillation connection point.
-
Restoration Essential: The critical fix for reels that feel "tight" or have a wobbling spool.
Technical Specifications & Schematics
Replacing the axle requires disassembling the gear box and removing the oscillation slider. To view the exact connection point between the axle and the oscillation block, please consult the detailed PDF schematics for the Quick 265 at www.reelschematic.com.
-
Installation Tip: The axle must be absolutely straight to function. When installing, ensure the connection to the oscillation slider is secure (often via a small screw or clip) and that the shaft is lightly oiled before sliding it through the pinion gear.
Alternate Part Numbers
If you are searching for this item in vintage parts manuals, repair logs, or third-party databases, it may be listed under the following identifiers:
-
100385
-
DAM-100-385
-
Main Axle / Spool Shaft
