XM 14 HW CMSI T - Compact MEGA Side Imaging+ Transducer

Product Description

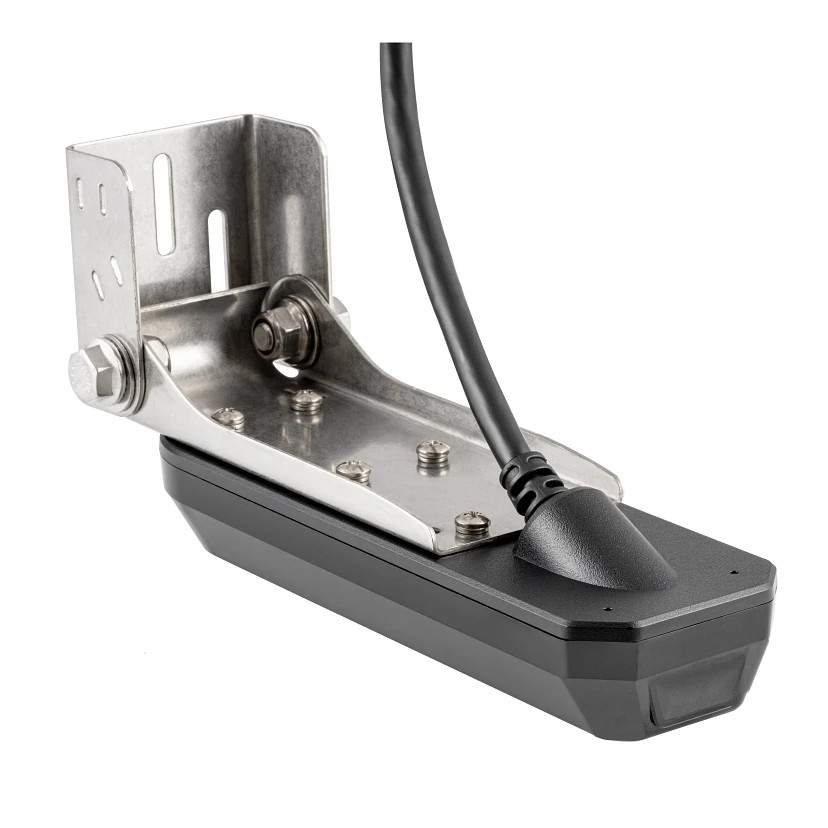

Humminbird XM 14 HW CMSI T | Compact MEGA Side Imaging+ Transducer

Upgrade your underwater vision with the Humminbird XM 14 HW CMSI T, a high-performance, transom-mount transducer engineered for elite anglers. This compact powerhouse delivers the most detailed sonar returns in the industry, combining MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP 2D sonar into a single, streamlined housing.

Designed for high-speed tracking and surgical precision, this transducer ensures you don't just see fish—you see the structure they hide in with absolute clarity.

Key Features & Performance

• MEGA Side Imaging+: Offers up to 250' of coverage on either side of your boat with 20% more detail than standard MEGA Imaging.

• MEGA Down Imaging+: Provides crystal-clear views up to 250' below your vessel, allowing you to distinguish fish from timber and brush piles.

• Dual Spectrum CHIRP: High-performance 2D sonar that provides highly detailed fish arches and a clear view of the bottom.

• Built-in Temperature Sensor: Integrated sensor provides fast and accurate water temperature readings directly to your head unit.

• Compact Design: The "Compact" footprint reduces drag and simplifies installation on a variety of transom types without sacrificing signal power.

Compatibility & Fitment

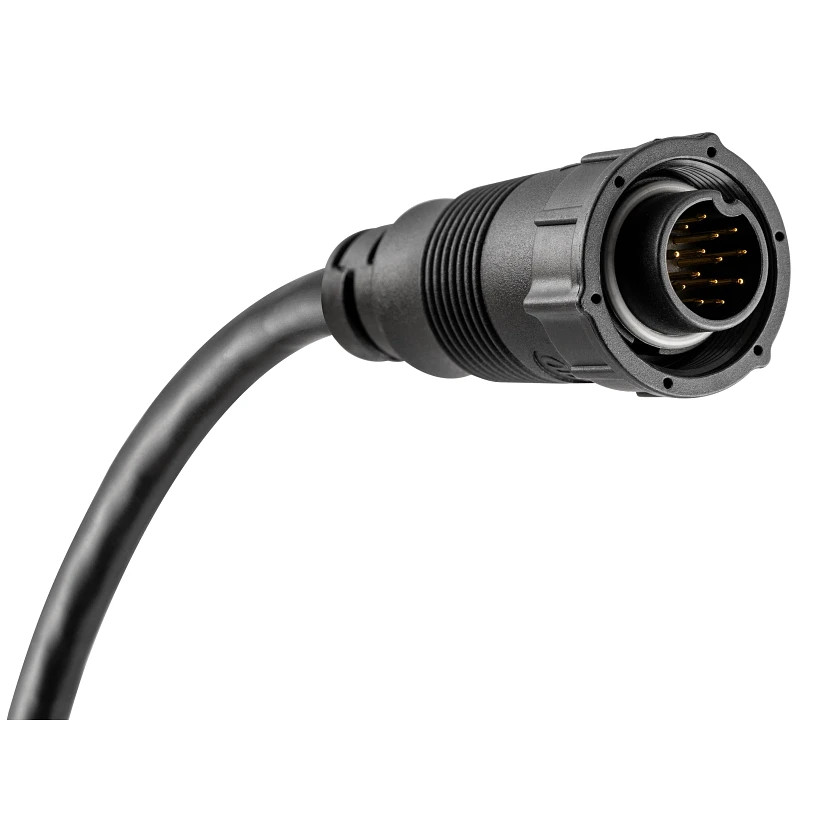

The XM 14 HW CMSI T is a specialized 14-pin transducer specifically designed to work with Humminbird’s premium networking series.

Compatible Models Include:

• APEX Series: All models (APEX 13, 16, 19).

• SOLIX Series: Specifically optimized for SOLIX G3 units.

• XPLORE Series: Fully compatible with the latest XPLORE networking systems.

Note: For exact part identification and internal assembly layouts, you can reference official PDF schematics at www.reelschematic.com.

Maintenance & Care Recommendation

To ensure your mounting hardware and pivot points remain corrosion-free and function smoothly—especially in saltwater environments—proper lubrication is essential. We highly recommend:

• Deuthlon Reel Gear Grease: Apply to mounting bolts and brackets to prevent seizing and salt buildup.

• Deuthlon Reel Oil: Ideal for maintaining any fine-tuned mechanical connections or auxiliary gear associated with your marine electronics setup.

Technical Specifications
