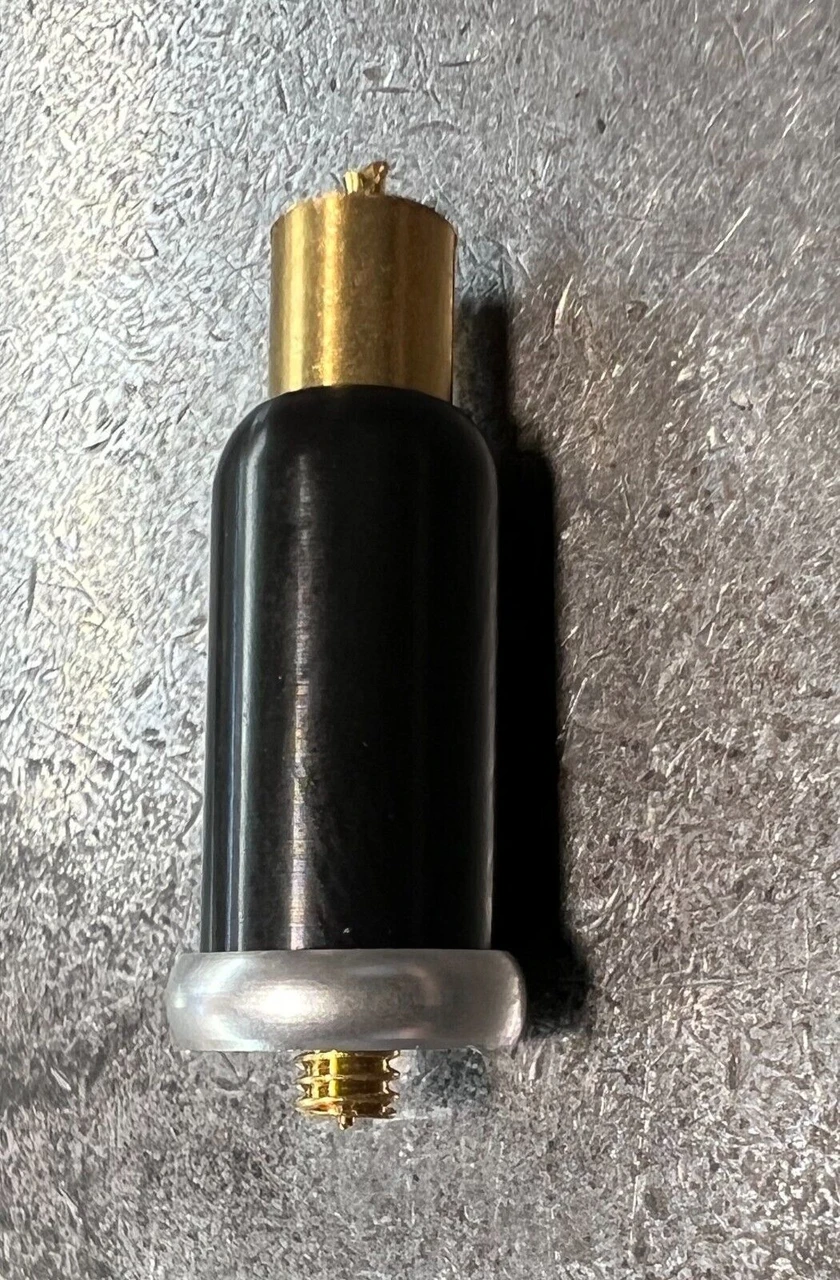

Hardy Handle Kit, Small

Product Description

Hardy Handle Kit, Small

Breathe new life into your favorite Hardy reel with this genuine Hardy Small Handle Kit. A complete, original-quality replacement, this kit is the perfect solution for repairing a broken handle or upgrading your existing one. Crafted from high-quality materials, this handle kit is designed to provide a reliable and comfortable grip for many seasons to come.

This kit is a popular choice for a wide range of smaller Hardy reels. However, please be aware that it is designed as a retrofit part and may require some adjustment for a perfect fit. The thread on the handle post is a #5-40, which may be slightly larger than the original on some reels. We strongly recommend measuring your existing handle parts before ordering to ensure compatibility.

Key Features:

• Genuine Hardy Product: An authentic Hardy replacement part, ensuring the highest quality and a perfect match for your reel's original aesthetics.

• Durable Construction: Built to last, with a solid brass post, a lightweight and strong aluminum base, and a comfortable, hard-wearing Delrin knob.

• Complete Kit: Includes the handle knob, post, and cup for a full replacement.

• Classic Design: The timeless design of this handle will maintain the classic look of your Hardy reel.

Models This Part Fits:

This handle kit is known to be compatible with a multitude of smaller Hardy fly reels. Due to the wide variety of Hardy models produced over the years, a definitive list of compatible reels is not available. Customer measurement and verification are essential to ensure a proper fit.

Installation:

This handle kit is intended for retrofit installation. Depending on your specific reel model, some minor adjustments may be necessary to ensure a perfect fit.

Part Numbers: 1403787, 1333885, 1332790

Installation Instructions:

Installing your new Hardy Handle Kit is a straightforward process that can be done at home with basic tools.

Tools You May Need:

• A set of small screwdrivers

• Pliers (with protected jaws to prevent scratching)

• A tap for threading, if necessary (#5-40)

• A fine-toothed file or fine-grit sandpaper

• Polishing compound

Step-by-Step Instructions:

1. Remove the Old Handle: Carefully remove the existing handle from your reel spool. This may involve unscrewing it from the back of the spool or, for older pinned handles, carefully drilling out the pin.

2. Prepare the Spool: Clean the handle mounting area on the spool. If your old handle was a different thread size, you will need to re-tap the hole to a #5-40 thread to match the new handle post. Take your time and ensure the new threads are clean and straight.

3. Assemble the Handle: Place the aluminum base over the post, followed by the Delrin handle knob.

4. Install the New Handle Post: Securely grip the top of the new brass handle post with pliers (it is recommended to wrap the post with a piece of leather or thick cloth to prevent marring the surface). Screw the post into the spool until it is tight and secure.

5. Secure the Handle: The excess length of the handle post will now be visible at the top of the knob.

6. Trim and Finish the Post: Using a fine-toothed file or saw, carefully cut the excess portion of the brass post so it is flush with the top of the handle knob.

7. Polish for a Professional Finish: Use fine-grit sandpaper and a polishing compound to smooth and polish the top of the brass post for a clean, professional finish.

By following these instructions, you can easily restore the handle of your classic Hardy reel, ensuring it's ready for your next fishing adventure. For any questions or assistance, the experts at Mike's Reel Repair are always happy to help.
