SHIMANO 1063C CLUTCH PAWL (BNT1799)

Reliable Clutch Engagement

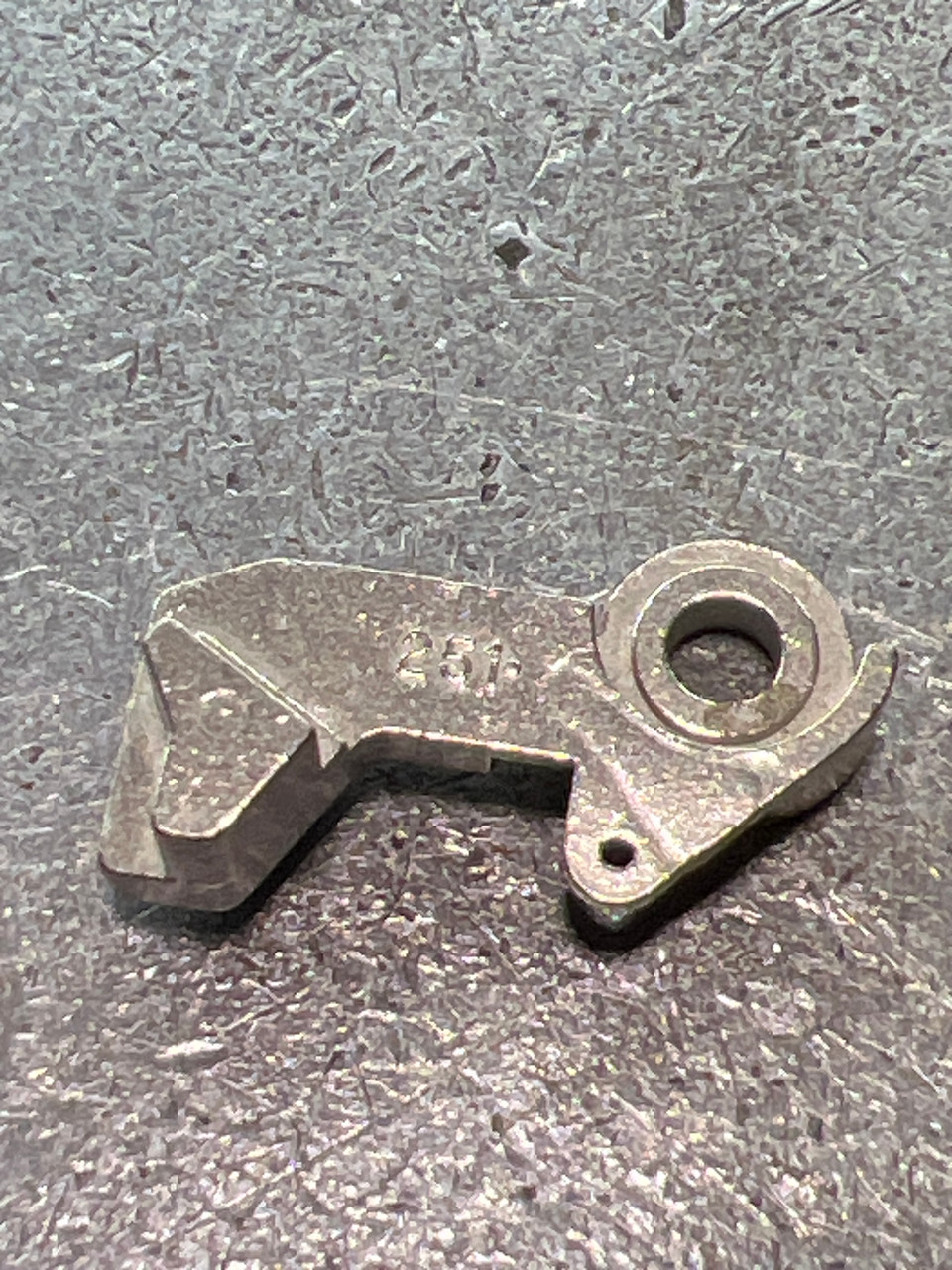

The Shimano 1063C Clutch Pawl (Part No. BNT1799) is a genuine OEM stainless steel component found in the clutch linkage of several classic Shimano baitcasting reels. This pawl works in tandem with the clutch cam and the clutch plate to control the engagement and disengagement of the spool.

When you depress the thumb bar, this pawl pivots to lock the reel in free spool. When you turn the handle, the return ratchet strikes the kick lever, which in turn pushes this pawl to snap the reel back into gear. A worn or bent clutch pawl is a common cause of "incomplete" engagement, where the reel feels stuck between free spool and gear, or makes a grinding sound when you start to retrieve.

Product Specifications

• Part Name: Clutch Pawl

• Manufacturer: Shimano

• Part Number (MPN): BNT1799

• Schematic Code: 1063C

• Material: Stainless Steel

• Installation Position: Clutch Mechanism (Handle Side, typically attached to the Clutch Plate)

Compatible Models

This part is specific to certain "Super Free" and "Type A/B" era baitcasters, often slightly different in shape from the more common BNT1306 used in the green Curados.

• Shimano Curado Series:

  • CU 100 B (The smaller 100-size Curado body)

  • CU 100 D (Curado D Series)

  • CU 101 D

• Shimano Citica Series:

  • CI 100 DSV

• Shimano Chronarch Series:

  • CH 50 MG (Magnesium)

  • CH 100 B (Chronarch B Series)

  • CH 100 BPV

• Shimano Crestfire:

  • CR 100 D

Note: This pawl is generally used in the 100-size frames of this era. 200-size reels often used the BNT1306. Always verify your specific schematic.

Installation & Reference

To ensure this is the correct pawl for your reel, please cross-reference the part number BNT1799 or the schematic code 1063C with your reel's service diagram.

• Schematic Diagrams: For detailed PDF schematics and part location verification, please visit www.reelschematic.com.

• Alternate Part Number: BNT1799

Installation Tip: The BNT1799 pawl usually relies on a Clutch Pawl Spring to maintain tension. If this spring is weak or installed incorrectly, the pawl will not return to the "engaged" position, leaving your reel stuck in free spool. Check the spring (often part BNT1607 or similar) for deformation when replacing the pawl.
