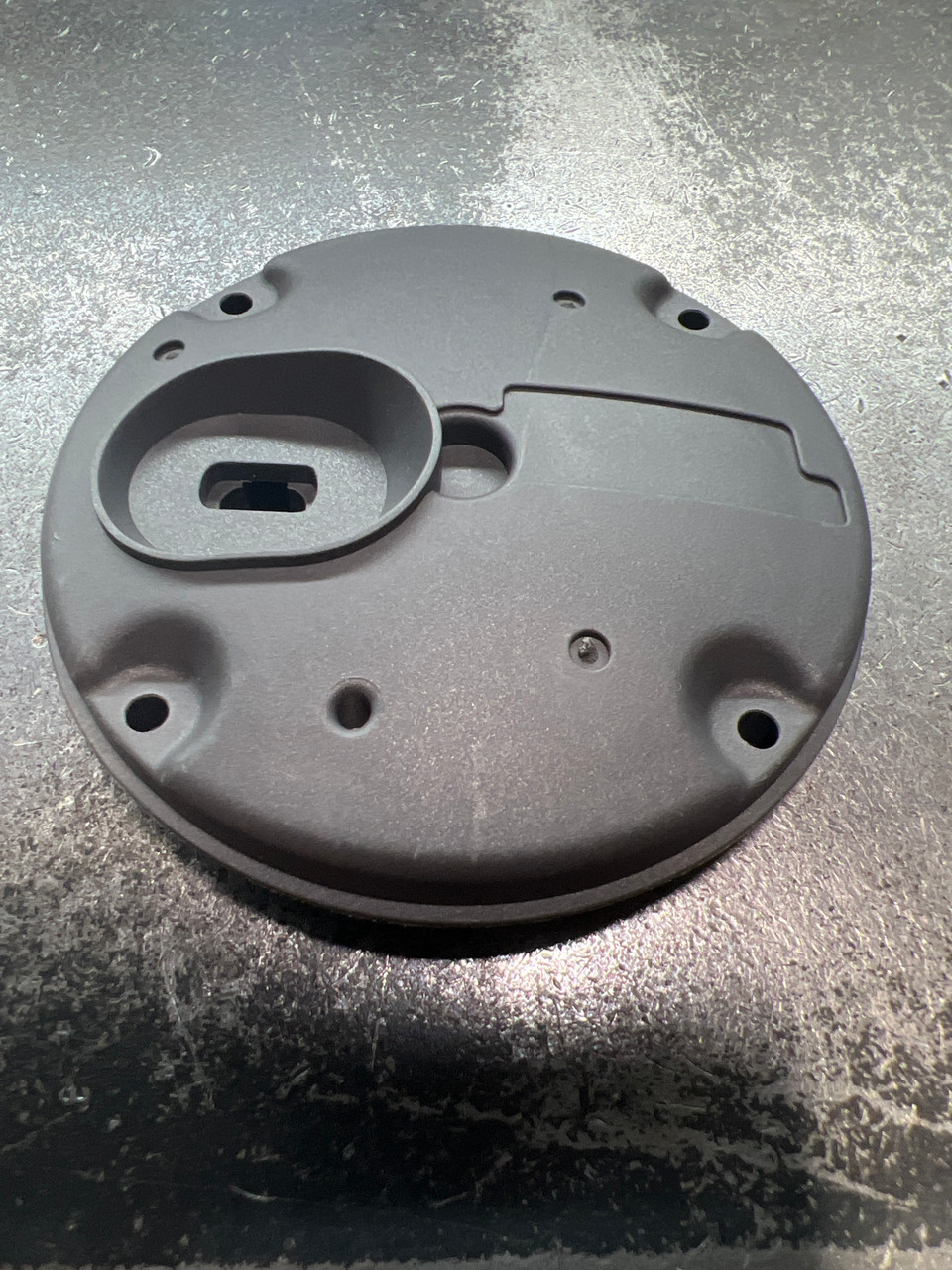

SHIMANO 10504 LEFT SIDE PLATE (TGT0614)
Restore Your Reel’s Structural Integrity
The Shimano 10504 Left Side Plate (Part No. TGT0614) is the genuine OEM structural cover for the non-handle side of the original Shimano Torium series. This side plate seals the internal components of the reel, protecting the spool bearings and clicker mechanism from saltwater intrusion and impact damage.
If your original side plate is cracked from a drop, corroded from saltwater exposure, or if the screw bosses are stripped, replacing it is vital to keep your reel rigid and aligned. This part comes finished in the classic Torium silver/gunmetal color to match the original factory aesthetics.
Product Specifications
-
Part Name: Left Side Plate
-
Manufacturer: Shimano
-
Part Number (MPN): TGT0614
-
Schematic Code: 10504
-
Material: High-Strength Composite / Graphite
-
Color: Silver / Gunmetal (Original Torium Finish)
-
Installation Position: Non-Handle Side (Palm Side)
Compatible Models
This part is engineered for the original generation of the Shimano Torium (TOR) star drag reels.
-
Shimano Torium Series (Original Silver Model):
-
TOR 14 (Torium 14)
-
TOR 16 (Torium 16)
-
TOR 20 (Torium 20)
-
TOR 30 (Torium 30)
-
Note: This side plate is not compatible with the newer "Torium A" (Hagane Body) series or the Torium HG models, which use different body designs.
Installation & Reference
To ensure this is the correct body part for your reel, please cross-reference the part number TGT0614 or the schematic location 10504 with your reel's exploded view diagram.
-
Schematic Diagrams: For detailed PDF schematics and part location verification, please visit www.reelschematic.com.
-
Alternate Part Number: TGT0614
Installation Tip: This Left Side Plate houses the Clicker Mechanism (Click Button, Pawl, and Spring). When transferring parts from your old side plate to the new one, take photos of how the clicker spring is seated. It is often under tension and can be tricky to re-seat in the new housing without a reference.
