Product Description

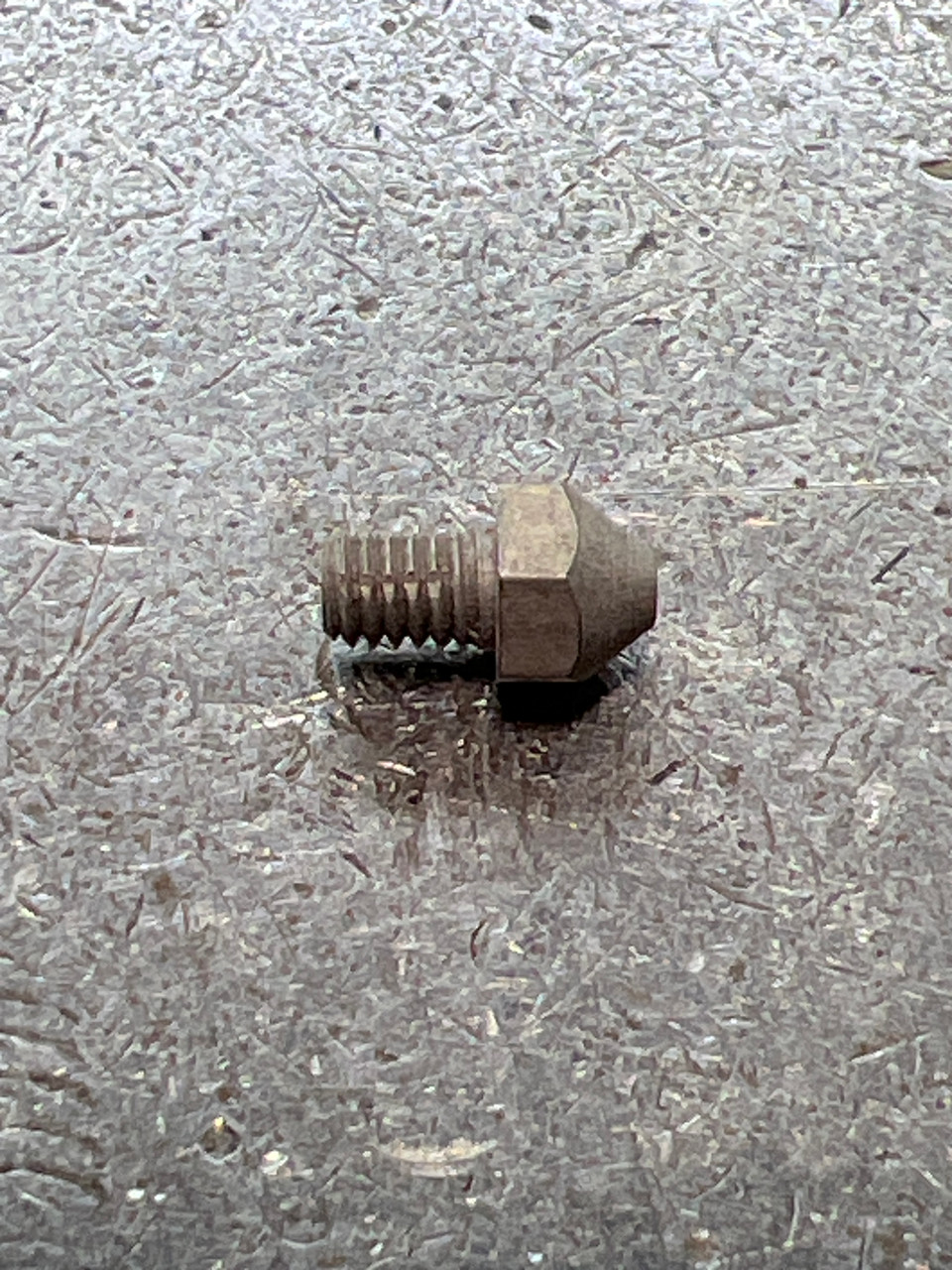

DAM Quick 100-463 Bail Trip Screw
Secure the Automatic Action of Your Vintage Reel
Maintain the precision of your classic spinning reel's bail system with the DAM Quick 100-463 Bail Trip Screw. This small but essential fastener is responsible for securing the bail trip lever (or kick lever) within the rotor assembly. Its function is critical: it anchors the mechanism that strikes the release cam, ensuring the bail snaps closed automatically when you turn the handle.
On vintage reels like the Quick 330 and 285, the constant vibration and snapping action of the bail can cause internal screws to loosen over time. If this screw backs out or shears off, the trip lever can detach, causing the bail to fail to return or jamming the rotor completely. Replacing a missing or stripped screw with this genuine-specification part restores the reliable, automatic functionality that is essential for efficient casting and retrieval.
Compatible Models
This part is precision-threaded to fit the rotor assembly of the following vintage DAM Quick models:
-
Quick 285
-
Quick 330 (Standard Series)
-
Quick 331 (High Speed Series)
Key Features
-
Precision Threading: Machined to the exact pitch required for the rotor housing of the specified models, ensuring a tight, vibration-resistant fit.
-
Mechanical Security: Keeps the trip lever properly aligned with the body cam for consistent bail activation.
-
Restoration Essential: A vital component for fixing reels that have lost their "snap" or have rattling parts inside the rotor cup.
-
Durable Metal: Hardened to withstand the torque and shock of repeated bail closures.
Technical Specifications & Schematics
This screw is located inside the rotor cup (under the cover plate on some models). To identify the exact location and the specific trip lever it secures, please consult the detailed PDF schematics for your specific model at www.reelschematic.com.
-
Installation Tip: When installing the 100-463 screw, it is crucial not to overtighten it. The trip lever often needs to pivot or slide slightly (depending on the specific model variation); overtightening can bind the mechanism. Apply a small drop of thread locker if the screw has a history of backing out.
Alternate Part Numbers
If you are searching for this item in vintage parts manuals, repair logs, or third-party databases, it may be listed under the following identifiers:
-
100463
-
DAM-100-463
