Product Description

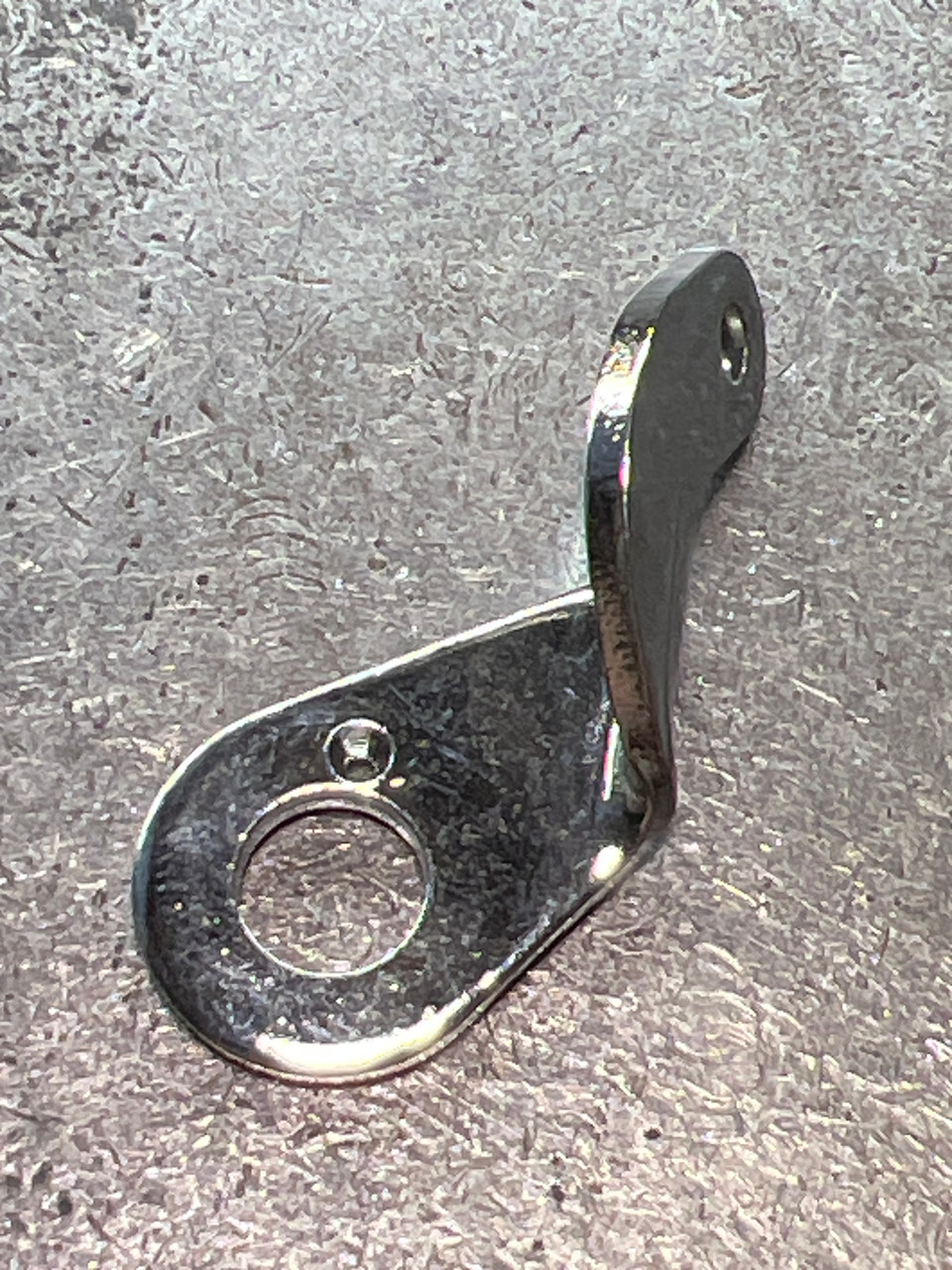

DAM Quick 100-216 Angle Lever
Restore the Smooth Oscillation of Your Heavy-Duty Reel
Ensure the perfect line lay of your vintage spinning reel with the DAM Quick 100-216 Angle Lever. This internal mechanical component is the driving force behind the oscillation system of the DAM Quick 440 and select compatible models. It serves as the transmission link between the main drive gear and the spool axle, converting the rotary motion of the handle into the vertical lifting motion of the spool.
On larger vintage reels like the Quick 440, the angle lever is subjected to significant stress, especially when retrieving heavy loads or fighting big fish. If your spool fails to move up and down—resulting in line piling up in one spot—or if you hear a knocking sound inside the housing, a worn or broken angle lever is often the cause. Installing this genuine-specification replacement ensures your line distributes evenly across the spool, preventing tangles and maximizing casting distance.
Compatible Models
This part is precision-engineered for the oscillation mechanism of the larger "Standard" series DAM Quick reels. It fits:
-
Quick 440
-
Quick QB 1
Key Features
-
Oscillation Control: Directly dictates the stroke of the spool to ensure tight, even line wrapping.
-
Precision Geometry: Designed to ride smoothly on the main gear stud without binding or excessive play.
-
Durable Alloy: Constructed to withstand the continuous friction and mechanical stress of heavy retrieval.
-
Restoration Essential: The critical fix for reels that spin but do not oscillate (lift the spool).
Technical Specifications & Schematics
Replacing the Angle Lever requires opening the main gear box. To see the exact connection point between this lever, the main gear, and the main axle shaft, please consult the detailed PDF schematics for the Quick 440 at www.reelschematic.com.
-
Installation Tip: The Angle Lever typically connects to the Main Axle and rides on a stud on the Main Gear. When installing, ensure the lever groove is well-greased and that it pivots freely on the axle connection point before sealing the side plate.
Alternate Part Numbers
If you are searching for this item in vintage parts manuals, repair logs, or third-party databases, it may be listed under the following identifiers:
-
100216
-
DAM-100-216
-
Oscillation Slider / Lever
