Product Description

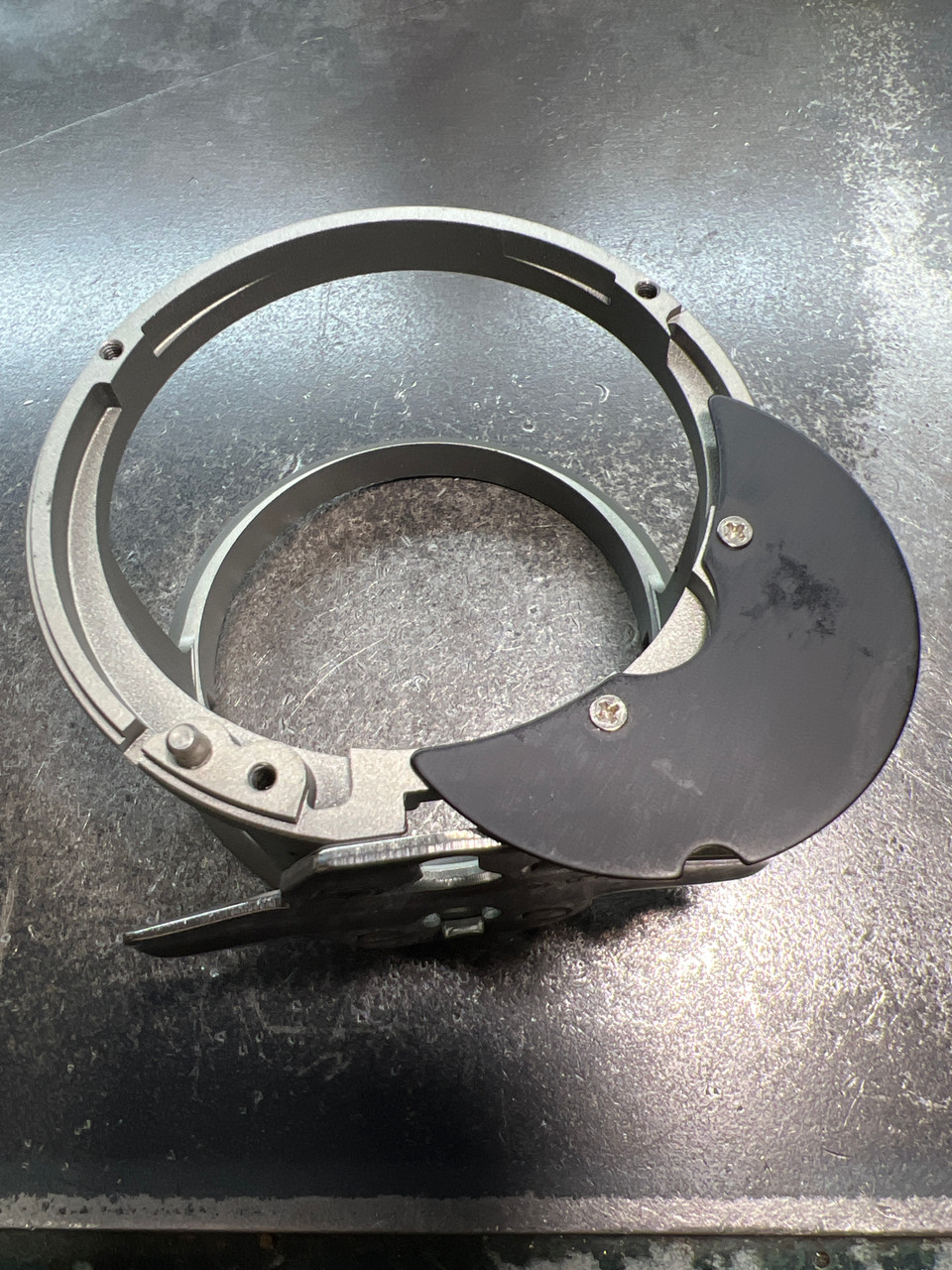

Fin-Nor JM301-01 Frame Assy LTL16
Part Number: JM301-01
Alternate Part Number: 1533391
Part Name: Frame Assembly
Product Overview
Rebuild the core of your offshore setup with the Fin-Nor JM301-01 Frame Assembly. This genuine factory replacement part is the foundational chassis for the Fin-Nor Lethal Lever Drag LTL16 series.
Manufactured from a solid block of precision-machined aluminum, this one-piece frame provides the extreme rigidity required to handle heavy drag loads without flexing. The "Frame Assembly" serves as the structural housing for your reel’s gearing, spool, and lever drag system, ensuring critical alignment is maintained even when battling stubborn pelagic fish.
Designed for the harsh saltwater environment, the frame features Fin-Nor's durable corrosion-resistant finish to protect against pitting and oxidation. Whether you are repairing a reel with structural damage or performing a complete restoration, this OEM part ensures your Lethal lever drag reel operates to its original factory specifications.
Key Features
-
Genuine Fin-Nor Component: Exact OEM replacement for the Lethal LTL16 series.
-
Machined Aluminum Construction: One-piece design offers superior strength and eliminates frame torque.
-
Corrosion Protection: Treated to withstand prolonged exposure to saltwater elements.
-
Precision Gear Support: Rigid housing ensures drive gears and bearings remain perfectly aligned under load.
-
Core Chassis: The central body unit required for a full reel rebuild.
Compatible Models
This part is verified to fit the following reel models:
-
Fin-Nor Lethal LTL16 (Single Speed)
-
Fin-Nor Lethal LTL16II (2-Speed)
Schematic Reference
To confirm the fitment and view the complete assembly diagram for your reel, please consult the PDF schematics available at: www.reelschematic.com
(Note: Always check your specific reel model number—LTL16 vs. larger sizes like LTL20 or LTL30—as frame dimensions vary by size.)
Installation Notes
Replacing the main frame assembly (JM301-01) requires a complete teardown of the reel. You will need to transfer all internal components—including the spool, gears, cam system, and side plates—from your old frame to this new unit. It is highly recommended to clean and re-grease all internal parts during the transfer to ensure optimal performance.
Restore the structural backbone of your Fin-Nor Lethal reel with authentic factory parts.
