Product Description

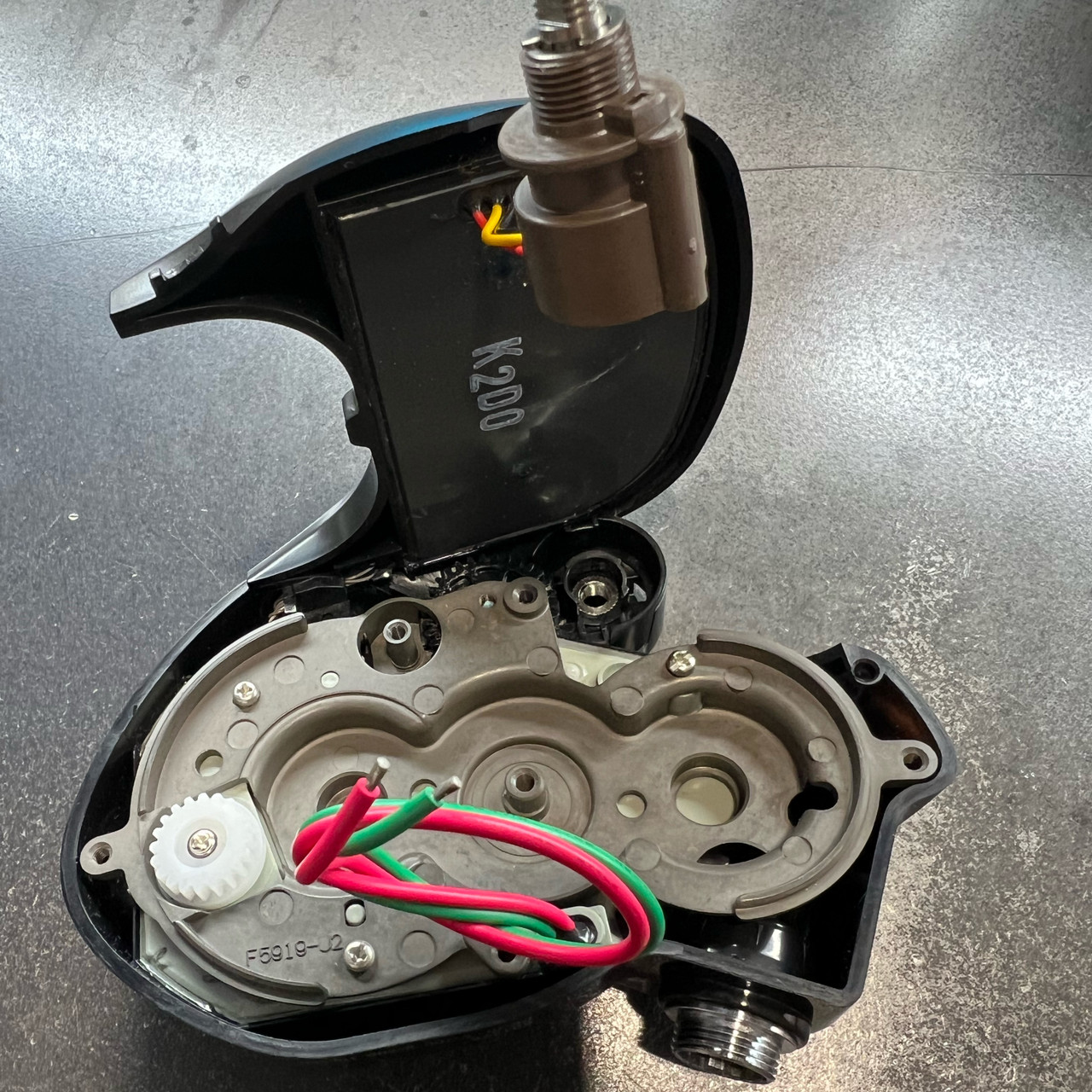

DAIWA IC MODULE (J10-3601 / 6J103601) - TANACOM 750

Restore the digital brain of your electric reel with this genuine Daiwa electronic display module.

The Daiwa J10-3601 IC Module (also identified as 6J103601) is the central electronic control unit for the Daiwa Tanacom 750 power-assist reel. This sealed component houses the LCD display and the microprocessor that manages the reel's advanced functions, including the line counter, depth memory, auto-stop, and jigging patterns.

If your reel's display is blank, fading, has water intrusion (fogging), or if the buttons have become unresponsive, replacing the IC Module is necessary to regain full functionality. This is a complete, factory-sealed Original Equipment Manufacturer (OEM) unit, ensuring water resistance and precise calibration for your deep-drop fishing.

Product Features

• Part Number: J10-3601

• Alternate Part Number: 6J103601

• Part Name: IC Module / LCD Display Assembly

• Function: Controls digital readout, motor speed logic, and auto-stop features.

• Display Type: High-contrast LCD (English readout capable).

• Fitment: Specific to the Tanacom 750 platform.

Why Replace Your IC Module?

The IC Module is the most critical interface between you and the reel. While designed to be water-resistant, saltwater intrusion or impact damage can compromise the electronics over time. A failing module can lead to dangerous situations, such as the reel failing to stop at the boat (shattering the rod tip) or losing line depth accuracy during deep drops. Installing a new J10-3601 module restores the factory logic and safety features.

Tech Tip: This module often includes the buttons and the bezel face depending on the specific assembly generation. Ensure the ribbon cables are seated perfectly dry and secure during installation to prevent shorting the new board.

Compatible Models

This electronic module is pre-programmed specifically for the line capacity and motor torque curves of the 750-size reel.

Daiwa Tanacom Series:

• Tanacom 750 (T750)

• Tanacom 750 E (European/Global spec)

(Note: While physically similar to the Tanacom 1000 module, the internal software regarding line capacity differs. Please stick to the 750-specific part for accurate depth readings).

Installation & Schematic Verification

Replacing the IC module requires opening the reel's side plate and handling delicate electronic connectors. We highly recommend consulting the specific schematic for your reel.

• Schematic Reference: You can view the wiring diagram and exploded view for the Tanacom 750 at www.reelschematic.com.

• Alternate Number Cross-Reference: This part is often listed as 6J103601 in Daiwa's global parts system.

Note: After installation, you will likely need to reset the reel's line counter. Refer to your owner's manual for the "P1" or "Line Input" calibration sequence.

Please note that this is an electrical product, and all sales are final, with no returns accepted.
