Product Description

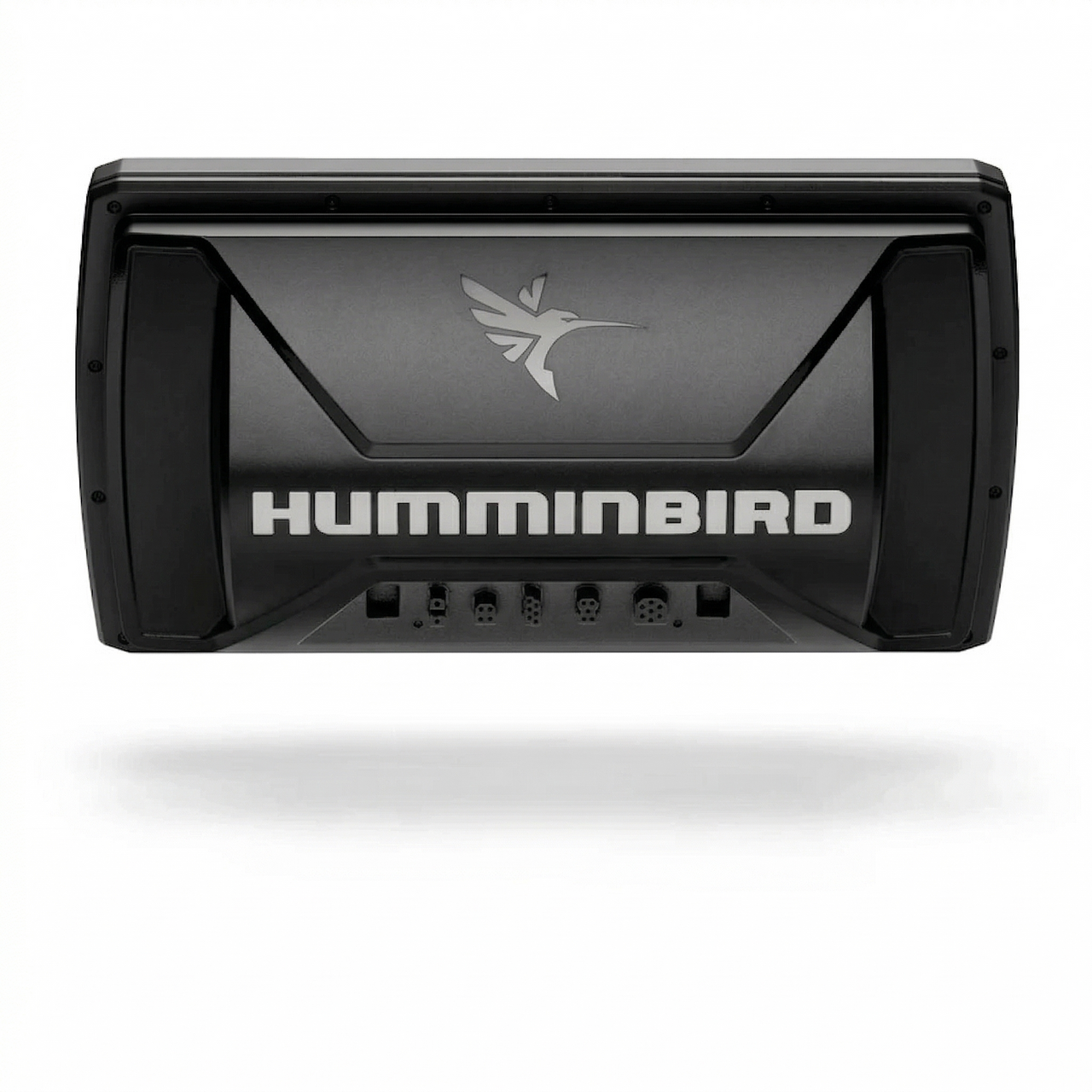

Humminbird HELIX 9 CHIRP MSI+ GPS G4N | Head Unit Only
Take command of the water with the Humminbird HELIX 9 CHIRP MSI+ GPS G4N. This listing is for the Head Unit Only, making it the perfect solution for anglers looking to upgrade an existing G3N or G4N network, replace a damaged display, or customize a high-performance electronics suite without paying for redundant mounting hardware or transducers.
The G4N (Generation 4 Network) represents the pinnacle of the HELIX series, featuring a crystal-clear 9-inch HD display and industry-leading sonar capabilities.
Core Features & Performance
-
MEGA Side Imaging+ (MSI+): Gain unprecedented underwater clarity with coverage up to 200 feet on either side of your boat. This "plus" version provides 20% more detail than standard MEGA Imaging.
-
MEGA Down Imaging+ (MDI+): Experience underwater views with clarity down to 200 feet below the hull.
-
Dual Spectrum CHIRP Sonar: Powered by the proprietary Low-Q CHIRP transducer, identifying clear fish arches and well-defined structure has never been easier.
-
Internal GPS & Humminbird Basemap: Navigate with confidence using the built-in basemap, which includes charts for more than 10,000 lakes and coastal coverage for the continental U.S.
-
NMEA 2000 & Ethernet Networking: Build a professional-grade ecosystem. This unit is fully compatible with Minn Kota i-Pilot Link, Talon/預APTOR shallow water anchors, and Cannon Downriggers.
Technical Specifications
| Feature | Specification |
| Display Size | 9" Diagonal |
| Resolution | 1024H x 600V |
| Sonar Type | MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP |
| Interface | Keypad Control |
| Communication | Bluetooth, Wi-Fi, Ethernet, NMEA 2000 |
| MicroSD Slot | Dual Slots (for LakeMaster and data logging) |
Compatibility & Integration
As a Head Unit Only package, this device is designed to integrate seamlessly with your existing hardware. It is compatible with the following Humminbird networking components and accessories:
-
Transducers: XM 9 HW MSI T (Transom Mount), XP 9 HW (In-Hull), and various MEGA 360/MEGA Live Imaging probes.
-
Mounting: Compatible with standard HELIX 9 Gimbal Mounts or in-dash mounting kits.
-
Power: Standard Humminbird 12V DC power cables.
-
Networking: AS EC Ethernet cables and NMEA 2000 backbone starter kits.
Note: This package includes the control head only. It does not include a gimbal mount, knobs, power cable, sun cover, or transducer.
